Overview

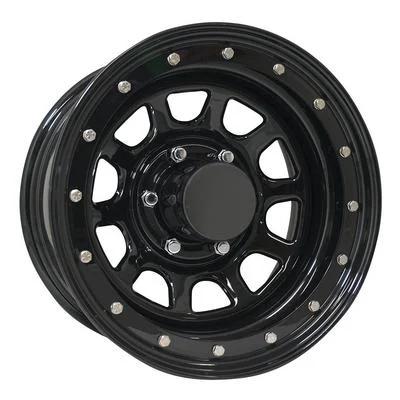

The Pro Comp PCW252-5165 is a 15×10 steel wheel from the 252 Series Street Lock line, with a windowed face and a gloss black powder coat. It has a 5 on 4.5 bolt pattern, a center bore of 83, an offset of -44 and a backspacing of 3.75.
The 252 Series belongs to Pro Comp’s Rock Crawler Xtreme wheels, built with a durable gloss or flat black powder coat. The center cap and lug nuts are sold separately.
The 5 on 4.5 pattern and 83 center bore need to match the hub, and the -44 offset sets the wheel’s mounting face well inboard of a standard wheel of the same width. Check the inner clearance to the suspension and the brake assembly before mounting.
The 15-inch diameter and 10-inch width need a tire sized for that rim. This windowed steel wheel is the style used in the 252 Series.
Key features
- Steel construction with gloss black powder coat
- Windowed wheel design
- 5 on 4.5 bolt pattern
- Offset -44 and backspacing 3.75
- Center cap and lug nuts sold separately
Offset, clearance and tire fit
Offset decides where the wheel sits in the wheel well, and a -44 offset pushes the mounting face inboard. That moves the tire inward, which can change clearance at the control arms, springs, brake hardware and the inner fender. Before mounting, check the inner clearance with the tire fitted, and turn the steering both ways to look for rubbing.
Wheel width and diameter also affect tire choice. A 15-inch rim takes a narrower range of tire sizes than a larger rim, and load rating matters for trail loads. Use a wheel spacer only after confirming the hub and clearance, and check that the lug nut seats match the wheel. Inspect the wheel after hard impacts for cracks around the windows.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5165 |
| Diameter | 15 inches |
| Width | 10 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 83 |
| Offset | -44 |
| Backspacing | 3.75 |
| Style | Windowed |
| Finish | Gloss black |
| Construction | Steel |
| Series | 252 Series Street Lock |
Vehicle fitment
It is a universal fit, so confirm the 5 on 4.5 pattern, 83 center bore and -44 offset match your truck, and check that the wheel clears the suspension and brakes.
Tire size and load rating must suit a 15×10 wheel. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One steel wheel. The center cap and lug nuts are sold separately.
