  • Pro Comp 97 Series Rock Crawler, 15×8 inch steel wheel in flat black, part number PCW97-5865F
  • 5 on 4.5 bolt pattern, 83 center bore, -12 offset, 4 backspacing
  • Holes-style face with a powder coat finish
  • No vehicle is named; check the hub first

Description

Overview

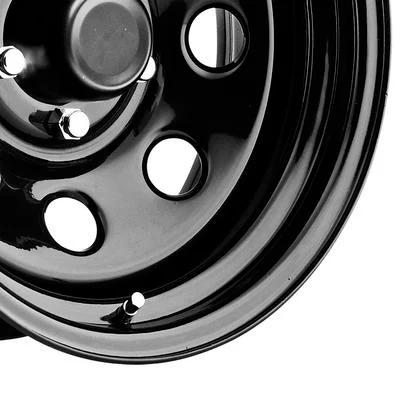

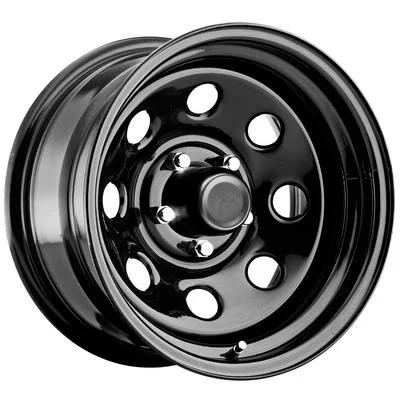

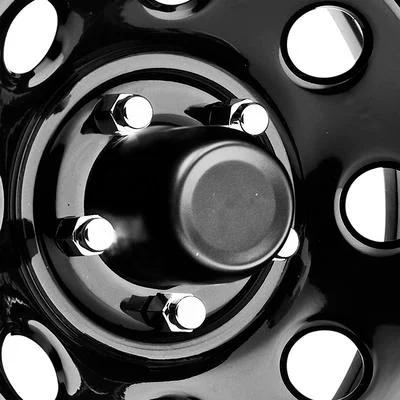

The Pro Comp 97 Series Rock Crawler in 15×8 inches is a flat black steel wheel, part number PCW97-5865F, with a 5 on 4.5 bolt pattern. Pro Comp Steel Wheels builds it in the Rock Crawler Series 97 for off-road vehicles that need a steel rim with a powder coat finish and a holes-style face.

The -12 offset places the mounting face behind the centerline. The 4 backspacing runs from the mounting face to the back edge of the rim, and the 83 bore is the opening that centers the wheel on the hub. The wheel is a steel holes-style design.

Key features

  • Steel wheel with a flat black powder coat
  • 15 inch diameter and 8 inch width
  • 5 on 4.5 bolt pattern
  • 83 center bore
  • -12 offset and 4 backspacing
  • Holes-style face from the 97 Series

Setting up the hub match

Hub match is the first thing to settle with a wheel of this lug pattern. The lug count and spacing must match the hub exactly, and the center bore should fit the hub so the wheel is supported by the hub rather than the lug nuts. A wheel that seats on the studs but not on the hub can run out of true, which shows up as vibration at speed.

The backspacing and offset set how the tire sits against the fender, brake caliper and steering arms. A moderate negative offset like this one pushes the tire out, while the backspacing shows how much room the back of the rim has for the brake parts. Adding a wider tire or a lift changes both numbers in practice, so check clearance after any change.

Steel can be repaired after a light hit, but a bent rim should still be replaced rather than hammered straight. Keep the lug nuts clean and check their torque after the first trail outing. Inspect the powder coat around the lip and bolt holes, and touch up chips early so rust does not start under the finish.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-5865F
Series 97 Series Rock Crawler
Construction Steel
Style Holes
Finish Flat black powder coat (the spec sheet says black)
Diameter 15 inches
Width 8 inches
Bolt pattern 5 on 4.5
Center bore 83
Offset -12
Backspacing 4

Vehicle fitment

No model years or chassis codes are attached to this wheel, so it is not confirmed for any single vehicle. The 5 on 4.5 bolt pattern and 83 center bore define the hub match, and the -12 offset and 4 backspacing decide how the tire sits against the fender and brake components. Check all four numbers against the vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8 inch rim with a negative offset sits farther out than a standard wheel, so confirm the tire clears the fender at full steering lock. The powder coat can chip if the wheel is dragged over a rough shop floor, so use a padded surface when mounting.

What’s included

This wheel ships alone as PCW97-5865F, so no center cap comes with it.

Not included: Center cap and lug nuts for part PCW97-5865F, which are sold separately.

SKU: PCW97-5865F Categories: ,

Questions & Answers

Does the Pro Comp PCW97-5865F wheel use a 5 on 4.5 bolt pattern?

Yes. It is listed with a 5 on 4.5 bolt pattern and an 83 center bore. Confirm both on your hub, because a different lug count or spacing will prevent the wheel from seating.

What is the offset and backspacing on this 15x8 wheel?

It has a -12 offset and a 4 backspacing. The negative offset places the mounting face behind the centerline, and the backspacing shows how much room sits behind the mounting face.

Is this wheel flat black or gloss black?

It has a flat black powder coat finish over steel. Flat black has no gloss, so it hides scuffs and wear better than a gloss coat would.

How do I tell if a steel wheel needs replacing?

Replace it if you find cracks near the lip or bolt holes, a bend that shows as a wobble, or deep pitting from rust. Light scuffs and chips in the powder coat can be touched up, but any structural damage calls for a new wheel rather than repair.
