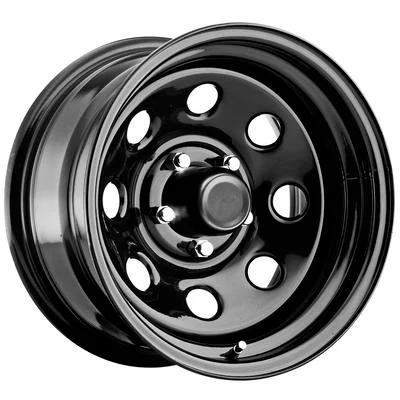

Pro Comp 97 Series Rock Crawler, 17x9 Wheel with 6 on 5.5 Bolt Pattern – Gloss Black – 97-7983

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 17x9 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 97 Series Rock Crawler, 17×9 inch steel wheel in gloss black, part number PCW97-7983
  • 6 on 5.5 bolt pattern, 108 center bore, -6 offset, 4.25 backspacing
  • Holes-style face with a powder coat finish
  • Center cap and lug nuts sold separately

Description

Overview

The Pro Comp 97 Series Rock Crawler in 17×9 inches is a gloss black steel wheel, part number PCW97-7983, with a 6 on 5.5 bolt pattern. It is the gloss version of the 17×9 wheel in the Rock Crawler Series 97 line, built for off-road builds that need a 17 inch steel rim.

The wheel has a -6 offset and a 4.25 backspacing. The offset places the mounting face slightly behind the centerline, while the backspacing measures the room behind the mounting face. The 108 center bore centers the wheel on the hub. The steel is welded and finished with a powder coat.

Key features

  • Steel wheel with a gloss black powder coat
  • 17 inch diameter and 9 inch width
  • 6 on 5.5 bolt pattern
  • 108 center bore
  • -6 offset and 4.25 backspacing
  • Holes-style face

Gloss finish and care

A gloss black powder coat looks sharp when new, but it shows scuffs, swirl marks and stone chips more readily than a matte finish. Keep a microfiber cloth and a mild soap in the vehicle for trail washdowns, and avoid abrasive pads that can dull the surface. Gloss finishes also reveal overspray and tire dressing, so wipe the face before those residues dry.

The finish is only one part of wheel care. The coat protects steel from moisture, mud and road salt, so a chip that exposes bare metal should be touched up with a matching coating soon after the trail. Rust that begins under a chip can spread beneath the coating, which is why a quick repair matters more than the cosmetic effect alone.

Set up the wheel with routine checks. Re-torque the lug nuts after the first few drives and after any tire change. Look at the lip and the bolt holes after off-road use, and replace the wheel if it shows cracks or a bend. Clean the hub face before mounting so it sits flat against the wheel.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-7983
Series 97 Series Rock Crawler
Construction Steel
Style Holes
Finish Gloss black powder coat (the spec sheet says black)
Diameter 17 inches
Width 9 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -6
Backspacing 4.25

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Use the 6 on 5.5 bolt pattern and 108 center bore to confirm the hub, then check the -6 offset against the fender and brake clearance on the vehicle.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Gloss powder coat shows scuffs more readily than matte, so protect the face during installation. Verify lug nut seat type and check the bolt holes for paint buildup before tightening.

What’s included

The wheel comes alone as PCW97-7983, so no center cap or lug nuts are included.

Not included: Center cap and lug nuts for part PCW97-7983, which are sold separately.

SKU: PCW97-7983 Categories: ,

Questions & Answers

Does the Pro Comp PCW97-7983 wheel use a 6 on 5.5 bolt pattern?

Yes. It uses a 6 on 5.5 bolt pattern with a 108 center bore. Both need to match the hub on your vehicle for the wheel to mount correctly.

What offset does this gloss black steel wheel have?

It has a -6 offset, which places the mounting face slightly behind the centerline. The 4.25 backspacing is the room between the mounting face and the back edge of the rim.

Is the center cap included with this wheel?

No. The center cap and lug nuts are sold separately, so buy them if you need a complete wheel setup. Check that the lug nut seat type matches this wheel before you order them.

Does gloss black need different cleaning from flat finishes?

Gloss black is cleaned the same way, with mild soap, water and a soft cloth. Avoid harsh solvents and abrasive pads, since they can dull the finish. Dry the wheel after washing so water spots and grit do not sit on the surface.
