Overview

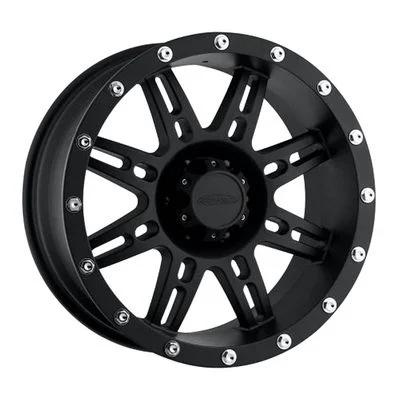

The Pro Comp PXA7031-7970 is a 17×9 split-spoke aluminum wheel in the 31 Series Stryker line, finished in matte black. It is an 8 on 170 wheel with a center bore of 131, an offset of -6 and a backspacing of 4.75.
The 8 on 170 pattern is the bolt layout of this Stryker. Pro Comp describes its wheels as cast aluminum with low-pressure casting, and the split-spoke face is the series’ signature look.
The 8 on 170 pattern and 131 center bore are the first measurements to check, followed by the -6 offset and 4.75 backspacing. The -6 offset places the 9-inch wide face outward, so clearance at the fender and caliper should be confirmed.
The matte black split-spoke face gives this 17-inch Stryker its look, and the wheel is built from cast aluminum.
Confirm the tire size and load rating before mounting this 9-inch wide wheel.
Key features
- Split-spoke face
- Matte black finish
- 8 on 170 bolt pattern
- Center bore 131
- Offset -6
Heavy-duty hub considerations
Trucks with eight-stud hubs usually carry more weight and tow heavier loads, so the wheel and studs see greater force. Stud count and pattern must match the hub exactly, and the center bore should seat the wheel on the hub so the load is not carried by the studs alone. Confirm the axle’s load capacity before choosing tires for the wheel.
Heavier trucks also tend to run larger brakes, which can sit closer to the inside of the wheel. Measure the caliper clearance with the wheel mounted, and look for any contact at full steering lock. Inspect the studs and lug nuts regularly, since a loose or damaged stud on a heavier hub can lead to a wheel coming off.
- Check the stud count on each hub
- Verify the axle’s load capacity
- Measure caliper clearance with the wheel fitted
- Inspect studs and nuts for damage
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-7970 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
The fit label is universal, but an 8 on 170 wheel only mounts to hubs with that pattern. Check the 131 center bore and the -6 offset before ordering.
Select tires that suit a 17-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. A center cap is not part of the stated contents.
