Overview

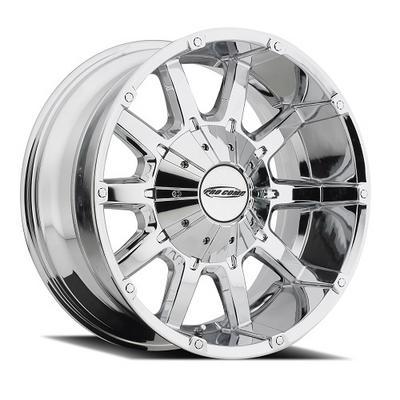

The Pro Comp Series 50 10 Gauge in 20×9 inches is a chrome aluminum wheel, part number PXA6050-293957, listed with both a 6 on 5.5 and a 6 on 135 bolt pattern. Pro Comp Alloy Wheels builds it in its 50 Series for trucks and SUVs that need a 20 inch alloy with a chrome finish.
The wheel has an 18 offset, which places the mounting face toward the outside of the rim so the wheel sits closer to the hub than a negative-offset wheel would. The 5.7 backspacing measures the distance from the mounting face to the back edge of the rim. The wheel is made with low-pressure casting, and the design uses a high-offset layout for brake clearance.
Key features
- Aluminum construction with a chrome finish
- 20 inch diameter and 9 inch width
- 6 on 5.5 and 6 on 135 bolt patterns
- 18 offset
- 5.7 backspacing
- 10 Gauge styling from the 50 Series
Choosing the right hub match
Two bolt patterns on one wheel is unusual, and it puts the hub check at the front of the job. A 6 on 5.5 hub and a 6 on 135 hub have different spacing, so the wheel can only seat on the pattern that matches the hub. Measure the stud circle before buying, and keep in mind that the center bore also has to match the hub for the wheel to center correctly.
Chrome alloy looks sharp but shows scratches and pitting if the finish takes a hit from road debris or a curb. Keep the wheels clean with mild soap, and avoid abrasive pads that dull the surface. Check the lug seats for wear at each rotation, since chrome can hide early corrosion at the seat.
A positive offset of 18 pulls the rim inward, which changes how the tire clears the suspension and steering. Wider tires may need extra clearance, so check the tire’s width against the fender edge before the wheel goes on. Inspect the brake caliper and the back of the spokes when the wheel is off.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA6050-293957 |
| Series | 50 Series 10 Gauge |
| Construction | Aluminum |
| Style | Series 6050 10 Gauge |
| Finish | Chrome |
| Diameter | 20 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 and 6 on 135 (both listed) |
| Offset | 18 |
| Backspacing | 5.7 |
Vehicle fitment
This 20 inch wheel is not tied to a particular year, make, model or chassis code. It has two bolt patterns, 6 on 5.5 and 6 on 135, so the hub must match one of them exactly, and it helps to confirm which applies before ordering. The 18 offset is positive, so the wheel sits inward compared with a zero-offset wheel, and clearance to the suspension should be checked on your vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Choose the bolt pattern that matches the hub before mounting, since the two listed patterns cannot be used interchangeably. Chrome finishes scratch easily, so use a soft mounting surface and avoid cross-threading the lug nuts.
What’s included
The 20×9 wheel (PXA6050-293957) is sold alone, without a center cap.
Not included: Center cap and lug nuts for part PXA6050-293957, which are sold separately.
