Overview

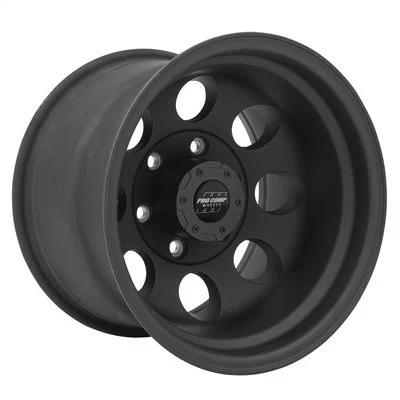

The Pro Comp PXA7069-5183 is a 15×10 flat black aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 6 on 5.5 bolt pattern. It is sold as one wheel with a center bore of 108 and a deep -47 offset.
The Vintage line uses low-pressure cast construction, which keeps the wheel light for its size. The flat black finish on the 15×10 face works well with dark trim. The deep offset brings the tire farther outboard, so check clearance during the first fitting.
Key features
- Low-pressure cast aluminum
- Holes style face
- 15-inch diameter, 10-inch width
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset -47 with 3.65 backspacing
Inspecting wheels after trail use
Trail use puts more stress on wheels than road use. Rocks, ruts and curbs can bend a lip or crack a spoke without obvious damage at first. After a hard day, look at the inner barrel, bead seat and spoke roots, then check the tire for uneven wear or bead leakage.
A deep offset adds leverage on the hub and bearings, so check for play by rocking the top of the tire. Look for looseness, grinding or heat. Re-torque the lug nuts after the first few drives. Keep a basic tire pressure gauge and a spare valve core in the vehicle to handle small problems on the trail.
- Check the inner barrel after rocky runs
- Rock the tire to test for bearing play
- Re-torque lug nuts after initial drives
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7069-5183 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Flat black |
| Diameter | 15 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -47 |
| Backspacing | 3.65 |
Vehicle fitment
The wheel is not built for one model. A six-lug hub at 5.5 with a 108 center bore is the first match, and the -47 offset needs a clearance check at the caliper.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Six lug holes at 5.5 must line up with the hub exactly. Test-fit with the tire mounted, since the wheel’s deep offset moves the tire well outward of the mounting face.
What’s included
One 15×10 aluminum wheel. Check the package contents against your installation before starting.
