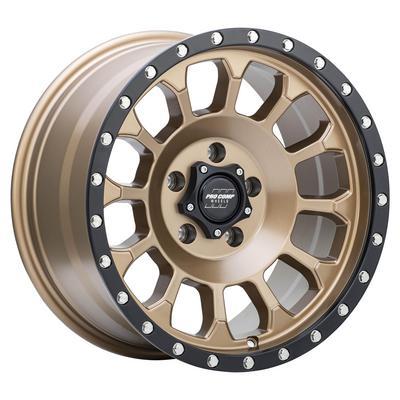

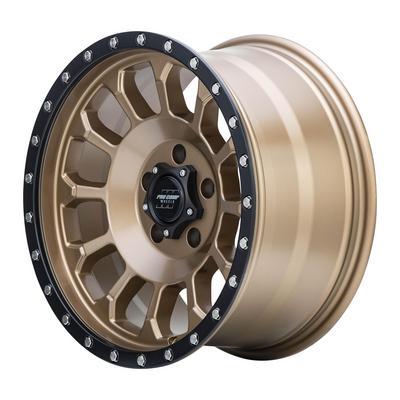

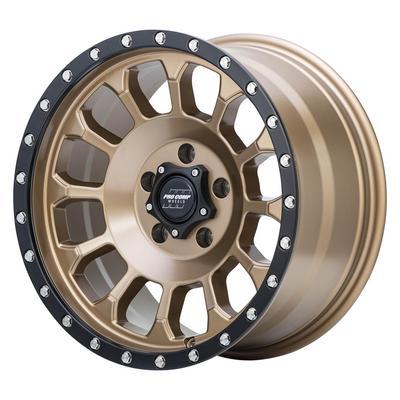

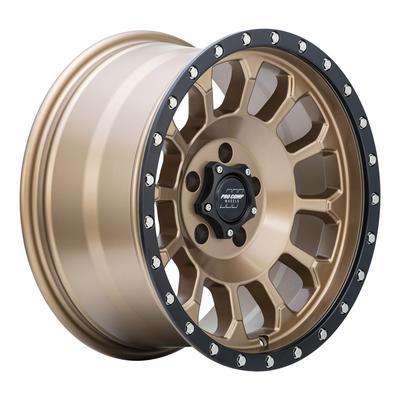

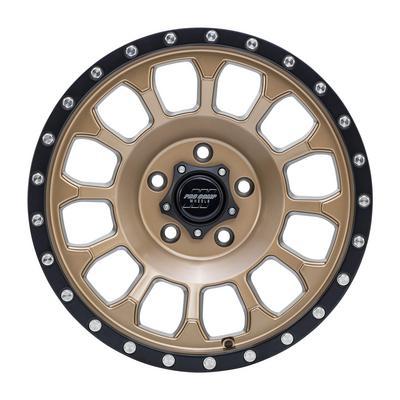

Pro Comp 34 Series Rockwell Wheel, 17x8.5 with 5 on 5 Bolt Pattern – Matte Bronze – 9634-78573

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x8.5 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 34 Series Rockwell, part number PXA9634-78573
  • 17×8.5 spoke wheel with a 5 on 5 bolt pattern
  • Matte bronze finish, center bore 71.5
  • Offset 0, backspacing 4.75, aluminum construction

Description

Overview

The Pro Comp 34 Series Rockwell wheel, part number PXA9634-78573, is a 17-inch aluminum spoke wheel with an 8.5-inch width and a 5 on 5 bolt pattern. The finish is matte bronze, and the wheel size is 17×8.5.

This family is built with low-pressure casting for performance trucks and sport utility vehicles. The wheel has a 71.5 center bore, a 0 offset and a 4.75 backspacing. It is not built for one vehicle, so compare the 5 on 5 bolt pattern and center bore against your hub first.

Key features

  • Low-pressure cast aluminum construction
  • 17-inch diameter with an 8.5-inch width
  • 5 on 5 bolt pattern
  • Center bore 71.5
  • Offset 0 with backspacing 4.75
  • Matte bronze finish on a spoke design

Brake and suspension clearance

A 4.75 backspacing on a 17-inch wheel places the mounting face forward, which leaves less room between the inner barrel and the brake caliper or inner suspension arms. The inner barrel is the first place to check, since a caliper or spring can touch it at full steering or compression. Measure the space from the hub face to the inner barrel before buying.

Shock absorbers, control arms and steering components that sit behind the wheel should be checked during installation. Rotate the wheel by hand with the suspension loaded to find rubbing points early.

  • Measure from the hub face to the inner barrel
  • Check caliper and rotor clearance at full lock
  • Rotate the wheel by hand to find rubbing points

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA9634-78573
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 5 on 5
Center bore 71.5
Offset 0
Backspacing 4.75
Style Spoke
Finish Matte bronze
Construction Aluminum

Vehicle fitment

No vehicle is named for this 17×8.5 wheel, and the brand classes it as universal fit. Check the 5 on 5 bolt pattern and 71.5 center bore against your hub, then confirm the 4.75 backspacing clears your brake and suspension parts.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 4.75 backspacing on a 17-inch wheel leaves a narrower inner clearance than deeper wheels, so check the caliper and any inner suspension components before mounting.

The matte bronze finish and aluminum spoke design are the visual points of this 17-inch wheel. Because the wheel is universal fit, the 71.5 center bore and 4.75 backspacing are the figures to measure on the vehicle before ordering, rather than relying on the wheel size alone.

What’s included

The package is one 17×8.5 wheel in matte bronze. Check the package contents against your installation before starting, including any center caps or lug nuts.

SKU: PXA9634-78573 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp PXA9634-78573 wheel use?

It uses a 5 on 5 bolt pattern. The 17x8.5 size and 71.5 center bore should be checked against your hub before ordering.

Is this 34 Series Rockwell wheel finished in matte bronze?

Yes, the finish is matte bronze. The wheel is aluminum with a spoke design. Choose the finish by appearance, and confirm the bolt pattern and offset separately. The wheel is 17 inches in diameter with an 8.5-inch width.

What backspacing does this wheel have?

The backspacing is 4.75, with a 0 offset. Compare these numbers with your brake caliper and inner suspension clearance before mounting.

How do I measure backspacing?

Backspacing is measured from the mounting face to the inner edge of the wheel. Lay a straightedge across the back of the wheel, measure to the mounting face, then compare that figure with the caliper and inner suspension clearance.
