Pro Comp 44 Series Syndrome, 17x9 Wheel with 6 on 5.5 Bolt Pattern – Satin Black – 5044-7983

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 44 Series Syndrome 17×9, part number PXA5044-7983
  • 6 on 5.5 bolt pattern, center bore 114
  • Satin black spoke wheel
  • Offset -6, backspacing 4.75

Description

Overview

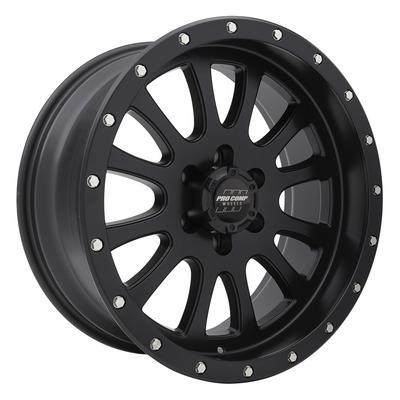

The Pro Comp 44 Series Syndrome 17×9 wheel, part number PXA5044-7983, is a 17-inch aluminum spoke wheel with a 9-inch width. Its bolt pattern is 6 on 5.5, and the satin black finish is named in the series as 44 Series Syndrome satin black.

The wheel has a 114 center bore, a -6 offset and a 4.75 backspacing. It is low-pressure cast and rated at 2500 to 3650 lbs per wheel. The fit is universal, so no vehicle is matched.

Key features

  • Low-pressure cast aluminum
  • 17 inches in diameter, 9 inches wide
  • 6 on 5.5 bolt pattern
  • Center bore 114
  • Offset -6 and backspacing 4.75
  • Satin black spoke finish

Hub size and clearance

Six-lug hubs with a 114 center bore need a careful match. A bore that is too small will not seat, and one that is too large usually calls for hub-centric rings. Measure the hub pilot and bolt pattern before the wheel is chosen, since both decide whether it sits square against the hub face.

The offset places the mounting face outward, which changes how the tire clears the caliper, the control arm and the fender. Tire diameter adds to that effect. Recheck clearance at full steering lock and with the suspension compressed, because either can bring the tire into contact.

Shops often mount a new wheel with the tire already balanced, but a check on the vehicle after a few miles is still useful. Look for vibration at highway speed, pulling under braking, and any sound that suggests the wheel is touching the caliper or a fender liner.

  • Measure the pilot diameter before fitting
  • Use hub-centric rings only when the bore is larger
  • Inspect ball joints and tie-rod ends for play
  • Check caliper gap after mounting

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5044-7983
Wheel diameter 17 inches
Wheel width 9 inches
Bolt pattern 6 on 5.5
Center bore 114
Offset -6
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel.
Style Spoke
Finish Satin black
Construction Aluminum
Series 44 Series Syndrome

Vehicle fitment

No vehicle list applies to this 17×9 wheel. The 6 on 5.5 pattern and 114 center bore are the hub figures to confirm, and the -6 offset should be checked against the fender and caliper.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the wheel is offset outward, confirm the outer clearance and the caliper fit after mounting, and test the steering and suspension travel before driving.

The 6 on 5.5 pattern and 114 center bore must match the hub. The -6 offset places the wheel face outward and the 4.75 backspacing sets the inner clearance, so measure both against the brake caliper and suspension before driving.

The 9-inch width and 17-inch diameter describe the wheel size, and the satin black spoke finish is the visual detail.

What’s included

Review what is in the box against your installation plan first.

SKU: PXA5044-7983 Categories: ,

Questions & Answers

Does the PXA5044-7983 use a 6 on 5.5 bolt pattern?

Yes. The bolt pattern is 6 on 5.5 with a 114 center bore. Measure the hub to confirm both figures before ordering the wheel for your vehicle.

What is the offset of this Syndrome?

The offset is -6 and the backspacing is 4.75. A negative offset moves the wheel outward, so the fender and caliper clearance should be measured.

Is this wheel vehicle-specific?

No. It is universal fit and is not built for one model. Verify the year, model and trim against your vehicle before buying.

How do I tell if a hub-centric ring is needed?

A ring is needed when the wheel's center bore is larger than the hub's pilot diameter. Compare both measurements with calipers before ordering a ring. A snug fit keeps the load on the hub rather than on the lug studs.
