Overview

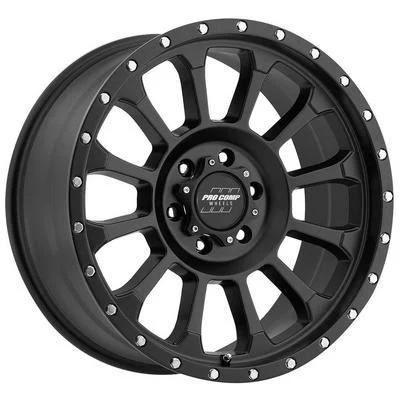

The Pro Comp 34 Series Rockwell 20×9 wheel, part number PXA5034-2983, is a 20-inch aluminum spoke wheel with a 9-inch width. It has a 6 on 5.5 bolt pattern and a satin black finish.
The 34 Series Rockwell is made with low-pressure cast aluminum. This larger version has a 108 center bore, 0 offset and 5 backspacing. Since it is universal fit, choose it by bolt pattern, center bore and clearance rather than by model name.
Key features
- Low-pressure cast aluminum
- 20-inch diameter with a 9-inch width
- 6 on 5.5 bolt pattern
- Center bore 108
- Offset 0, backspacing 5

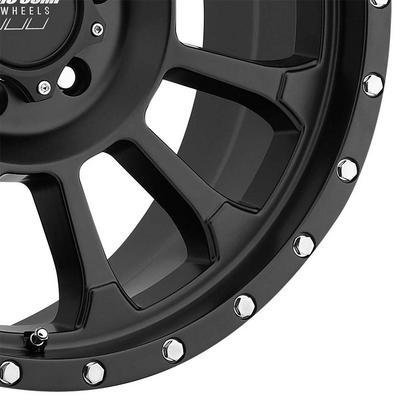

- Satin black spoke design
Large-diameter wheel planning
A 20-inch wheel leaves less room for brake calipers and tire sidewalls than smaller wheels. Measure the caliper body, rotor size and fender clearance before buying, since a larger wheel often reduces the space around the brakes. Tire choice matters too. A bigger rim usually means a lower sidewall, which affects ride comfort and the way the suspension absorbs bumps.
Handling and wear change with size. Heavier wheels and tires add rotating weight, which can affect acceleration and braking. Check the wheel and tire for runout after mounting, and keep the lug seats clean and free of rust so the wheel seats evenly against the hub.
- Measure caliper and rotor clearance first
- Consider tire sidewall height and ride comfort
- Check runout after mounting
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5034-2983 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 34 Series Rockwell |
Vehicle fitment
This 20×9 wheel is not matched to a vehicle, and Pro Comp classes it as universal fit. Confirm that the 6 on 5.5 pattern and 108 center bore match your hub, and check that a 20-inch wheel clears the brake and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The larger 20-inch diameter needs more clearance for brake calipers and tire sidewalls than smaller wheels, so measure those before mounting the wheel.
At 20 inches in diameter, this wheel has a larger rim than many factory wheels, which leaves less room for brake calipers and affects tire choice. Measure the caliper, the tire and the fender before ordering, and confirm the 6 on 5.5 hub match.
What’s included
The package holds one 20×9 wheel in satin black. Check the package contents for center caps and lug nuts against your installation before starting.
