Overview

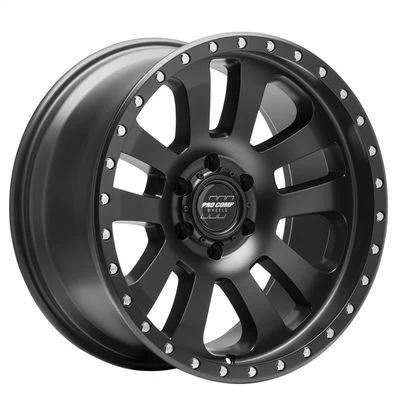

The Pro Comp 46 Series Prodigy 20×9.5 wheel, part number PXA7046-29536, is a 20-inch aluminum spoke wheel that is 9.5 inches wide. It has a 6 on 135 bolt pattern and a satin black finish.
The wheel carries an 87 center bore, a -6 offset and a backspacing of 5. Pro Comp says its Xtreme alloys use aerospace alloys and Counter Pressure Casting and include center caps. The brand classes the wheel as universal fit, and the negative offset places the mounting face outward.
Key features
- Aerospace alloy construction
- 20-inch diameter and 9.5-inch width
- 6 on 135 bolt pattern
- Center bore 87
- Offset -6 and backspacing 5
- Satin black spoke design
- Center caps included, per the brand
Tire and clearance planning
Tire choice matters as much as the wheel itself on a wide rim with a negative offset. The tire has to seat within the rim’s approved width range, and the sidewall should sit clear of the fender lip and the suspension through full travel, both at rest and under load. Tire diameter also affects speedometer reading and gearing, so compare the overall diameter of any new tire with the original before choosing. Small changes in offset can shift steering feel, so an alignment check after mounting is worth scheduling.
Aluminum spoke wheels are light, but spoke roots can crack under repeated impacts. After rough trail use, look over each spoke root and the bead seat for cracks, bends or flat spots. Keep the valve stem clear of the caliper and inspect the stem for splits when the tire is off the rim.
- Check bead seating and inflation pressure after mounting
- Recheck lug nut torque after the first few drives
- Look for spoke root cracks after rough trail use
- Confirm caliper clearance with the tire at full steering lock
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7046-29536 |
| Wheel diameter | 20 inches |
| Wheel width | 9.5 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | -6 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 46 Series |
Vehicle fitment
No vehicle list applies to this 20×9.5 Prodigy. Confirm the 6 on 135 hub and 87 center bore first, then check the -6 offset and the 20-inch diameter against the brake caliper and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A wider 9.5-inch rim with a negative offset changes tire position, so check fender and suspension clearance with the wheel mounted before driving.
The 20-inch diameter with 9.5-inch width and -6 offset gives a wide rim profile, so tire choice and inner clearance are worth measuring before mounting.
The Xtreme alloys are aerospace alloy wheels made with Counter Pressure Casting, and this 20×9 version comes with center caps. The 9.5-inch width and -6 offset change tire position, so check the caliper and fender before driving.
The 6 on 135 pattern and 87 center bore must seat on the hub. A 5 backspacing sets the inner position, so measure both the hub and the clearance before ordering this wheel for your vehicle.
What’s included
One 20×9.5 wheel in satin black is described. Per Pro Comp, Xtreme alloy wheels include center caps.
