  • 4-inch spacer lift kit with ES3000 shocks
  • Steering knuckle spacers, front and rear crossmembers and front sway bar links
  • Steering drop centerlink, extended length brake lines and a rear block and U-bolt kit
  • ES3000 front and rear shocks with a 3 to 4.99 inch lift height range

Description

Overview

The Pro Comp K5050B is a 4-inch spacer-type lift kit with ES3000 front and rear shocks. It uses steering knuckle spacers and front and rear crossmembers to raise the front, and a rear block and U-bolt kit to lift the back.

The steering is corrected with a steering drop and centerlink, and extended length brake lines are included to reach the raised components. Front sway bar links are part of the kit, and the lift height range is 3 to 4.99 inches.

Key features

  • 4-inch lift height from a Stage 1 kit
  • Steering knuckle spacers
  • Front and rear crossmembers
  • Front sway bar links
  • Steering drop and centerlink correction
  • Extended length brake lines and rear block and U-bolt kit

Spacer lift basics

Spacer lifts raise the vehicle by inserting new spacers and crossmembers between existing components rather than replacing the springs. That approach keeps the factory spring rates in place, but it also moves the steering and suspension pivots, so the geometry must be reset carefully. Every spacer changes the angles of the joints it sits between, and those angles should be checked once the kit is complete.

Before installing, inspect the factory ball joints, control arm bushings and tie rod ends, since a spacer lift puts new stress on aging parts. Brake lines, sensor wires and the driveline all need room to move at the new height, which is why extended lines and careful routing matter. After the first drives, recheck the hardware and listen for new noises, which often point to a bolt that has settled.

Specifications

Brand Pro Comp Suspension
Part number K5050B
UPC 614901207163
Lift height 4 inch (lift height range 3 to 4.99 inches)
Lift kit stage Stage 1
Suspension type Spacer
Front lift Steering knuckle spacers
Steering correction Steering drop and centerlink
Rear lift Lift blocks and U-bolts
Shocks ES3000 front and rear

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Compare the steering knuckle spacer and crossmember layout against your truck before starting the install.

Do not assume coverage from the spacer design or the lift height alone. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Steering knuckle spacers and the steering drop change the front geometry, so have the alignment and the driveline angles checked once the kit is installed.

What’s included

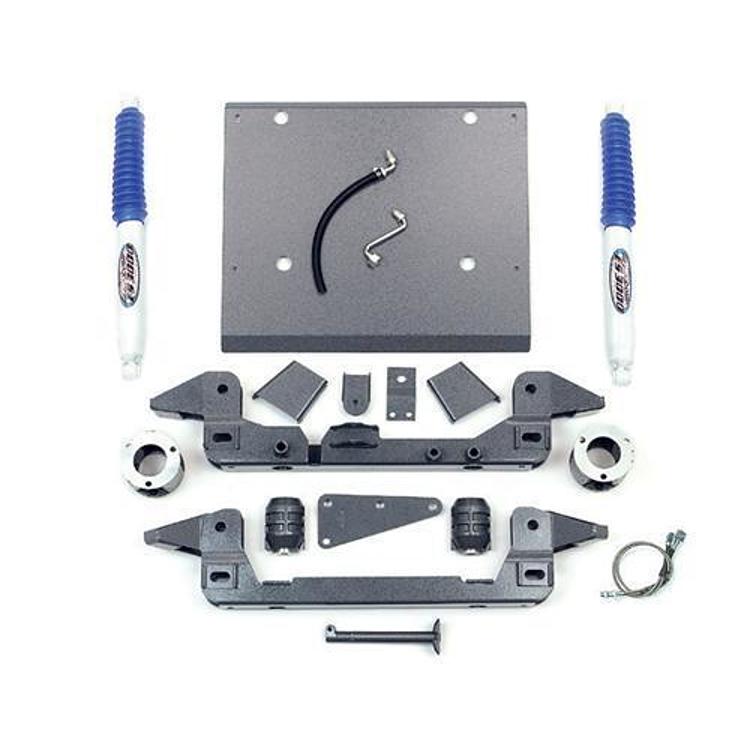

The kit includes steering knuckle spacers, front and rear crossmembers, front sway bar links, the steering drop and centerlink, extended length brake lines, the rear block and U-bolt kit, and ES3000 front and rear shocks.

SKU: EXPK5050B Category:

Specification

Shipping weight 127.57 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which trucks is the K5050B for?

Confirm fit for your vehicle's year, model and trim before ordering. Before starting the install, compare the knuckle spacers, crossmembers and rear block kit against your truck's front and rear layout.

Are shocks included?

Yes. The title and feature list name ES3000 front and rear shocks as part of the kit. They are supplied with the steering knuckle spacers and crossmembers in one package.

What lift height does it give?

The kit is a 4-inch lift, within a lift height range of 3 to 4.99 inches in the specifications table.

Do spacer lifts affect the factory shocks?

Often yes, because the shock length and mounting angle change with the new height. Check the shock mounts and travel after installation, and confirm the shocks have enough room to move freely through their range.
