Overview

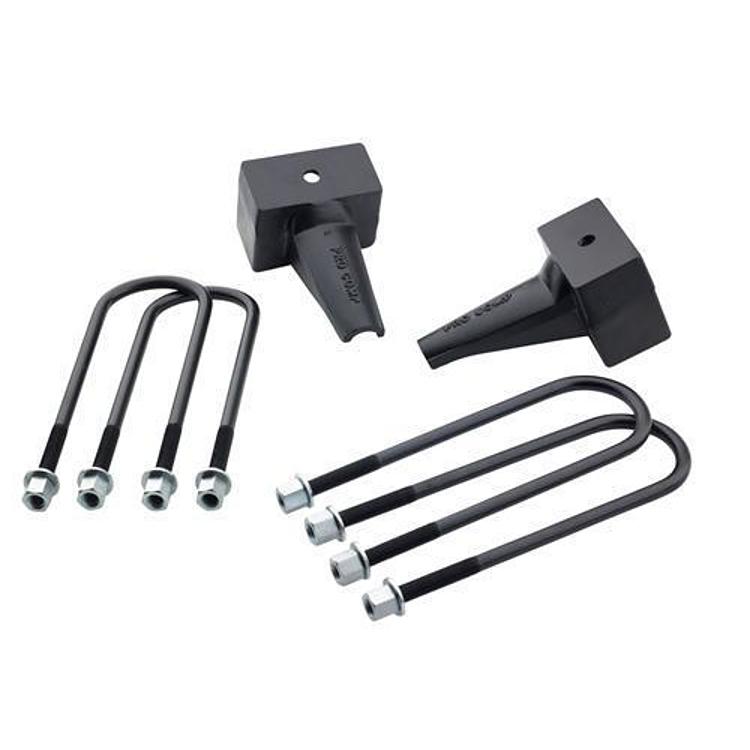

The Pro Comp 62244 is a 4 inch rear lift block kit for leaf spring equipped vehicles. Block kits like this one are how a leaf spring rear is raised, and this one is rated for 4 inches.
Taper on these blocks is meant to help keep driveshaft angles in order at the raised rear. Confirm fit for your leaf spring pack and axle before ordering.
Key features
- 4 inch rear lift
- Tapered lift blocks
- For leaf spring rear suspensions
Driveline after lifting
A rear block lift moves the axle away from the transmission and transfer case, which changes the working angles of the driveshafts. Tapered blocks are shaped to reduce that change, but the final angles still depend on the vehicle and its springs.
After installation, measure the driveshaft angles at each end and note them. Vibration at highway speed often points to an angle problem, and a worn U-joint can make it worse. Inspect the joints for play and replace any that feel loose before the lift is considered finished.
Brake hoses and the parking brake cable also need slack at the new height. Check them at full droop and full compression, and recheck the U-bolts after the first few drives. Keep a short log of readings so changes are easy to spot at later service.
- Measure driveshaft angles at both ends
- Inspect U-joints for play after lifting
- Check brake hose slack at full droop
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 62244 |
| UPC | 614901022278 |
| Type | Rear block kit with U-bolts |
| Lift height | 4 in |
| Block shape | Tapered |
Vehicle fitment
Compare your rear spring pack and axle with this kit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Sold as a complete block kit. Check the pieces against your installation plan when they arrive.
