Pro Comp 4 Inch Lift Kit with ES3000 Shocks – K3064

Pro Comp Suspension

Shop Jeep CJ7 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch stage 1 leaf spring lift with pitman arm steering correction
  • Extended length brake lines and ES3000 front and rear shocks
  • Fits Jeep CJ5, CJ7 and Scrambler models from 1981 to 1986
  • Max tire size 33×12.50 with 15 to 20-inch wheels, 8 to 10-inch width

Description

Overview

The Pro Comp K3064 is a 4-inch stage 1 leaf spring lift made for the CJ5, CJ7 and Scrambler. Fitment covers 1982–1983 CJ5s, 1982–1986 CJ7s and 1981–1985 Scrambler models across Base, Laredo, Limited and Renegade trims, along with Scrambler SL and SR.

The kit lifts the front with leaf springs and the rear with springs and U-bolts. It adds a pitman arm for steering correction and extended length brake lines, and ES3000 shocks are fitted at both ends. The lift height range is 3 to 4.99 inches.

Key features

  • 4-inch lift, stage 1
  • Pitman arm for steering correction
  • Extended length brake lines
  • Front leaf springs
  • Rear springs and U-bolts
  • ES3000 front and rear shocks

Steering after a pitman correction

A pitman arm correction changes the link between the steering box and the front axle, so steering feel and toe can shift after installation. The steering should be checked for centering and free movement once the truck is back on its wheels. A drag link that is worn or bent should be replaced before the correction is set.

Extended brake lines need careful routing, since they must follow the raised suspension without rubbing on the frame, springs or steering parts. Secure them with clamps, leave slack for suspension travel and check the lines for chafing at each service.

  • Check steering centering after the first drive
  • Inspect drag link and tie rod ends for play
  • Route brake lines clear of springs and steering parts

Specifications

Brand Pro Comp Suspension
Part number K3064
UPC 614901123142
Lift 4 inches, stage 1
Lift height range 3 to 4.99 inches
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Steering correction Pitman arm
Brake lines Extended length
Front shocks ES3000
Rear shocks ES3000
Max tire size 33×12.50
Wheel size range 15 to 20 inches
Wheel width range 8 to 10 inches

Vehicle fitment

It fits 1982–1983 Jeep CJ5, 1982–1986 Jeep CJ7 and 1981–1985 Jeep Scrambler models. Wrangler and Cherokee models are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The pitman arm correction changes the steering linkage, so check the steering alignment and toe after installation. The extended brake lines should be routed and checked for length before the wheels are fitted.

What’s included

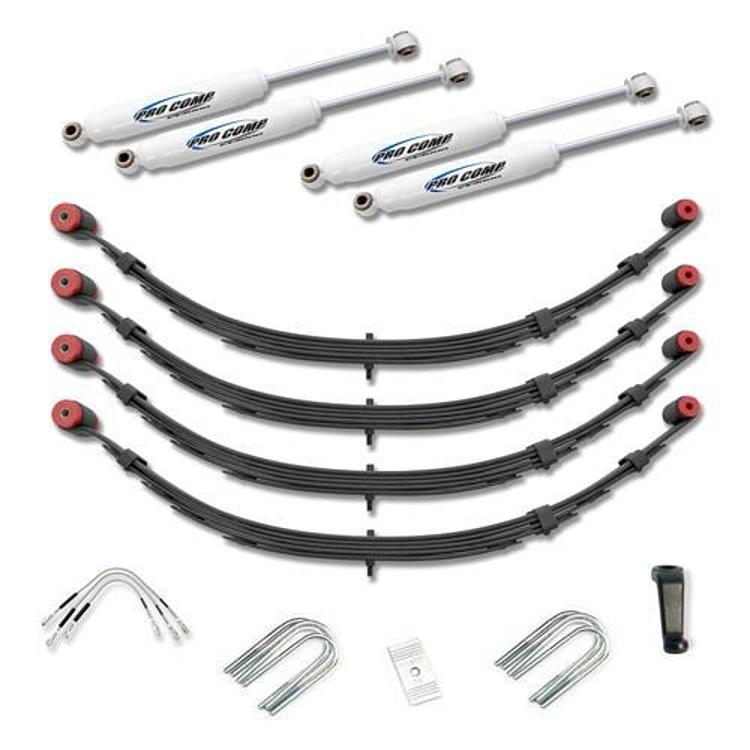

The kit includes front leaf springs, rear springs and U-bolts, a pitman arm for steering correction, extended length brake lines and ES3000 front and rear shocks.

SKU: EXPK3064 Category:

Specification

Shipping weight 168.64 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51982–1983Base, Laredo, Limited, Renegade
Jeep CJ71982–1986Base, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K3064 fit a 1984 Jeep CJ7?

Yes. It fits 1982 through 1986 Jeep CJ7 models, which includes 1984. Check the trim before ordering, and confirm that your steering setup suits the pitman arm correction.

Is a steering correction included with the K3064?

Yes. The kit includes a pitman arm for steering correction, and extended length brake lines are supplied with it. Check the steering after the lift is installed, since the pitman arm changes the linkage geometry.

What shocks does the K3064 use?

ES3000 shocks are supplied at the front and the rear. The specifications list them as included, and the lift height range is 3 to 4.99 inches for this 4-inch stage 1 kit.

Do extended brake lines need regular inspection?

Yes. Longer lines can rub on frame edges or suspension parts as the axle cycles, so check them at each service. Look for chafing, kinks and fitting leaks, and keep them clear of exhaust heat.
