Overview
The Pro Comp K4083B is a 6-inch stage 1 coil spring lift with radius arm brackets for the 1981–1989 Ford F-150. The front uses coil springs, and the rear is raised with a block and U-bolt kit. The lift height range is 5 to 6.99 inches.
ES3000 front and rear shocks are supplied. Bump stop extensions and a pitman arm for steering correction are included, along with extended length brake lines. The shock boots are not included.
Key features
- 6-inch stage 1 lift
- Front coil springs with radius arm brackets
- Rear block and U-bolt lift
- Bump stop extensions
- Pitman arm steering correction
- Extended length brake lines
Wheel and tire fit
Wheel offset, tire width and backspacing all affect how a 6-inch lift looks and works. A taller truck can take larger tires under the fenders, but the new position of the axle means clearance at full compression should be tested. Check the inner fender and the tire against the frame before driving.
Rubbing usually shows up at full steering lock or when the suspension is loaded, so test those positions on a driveway first. If tires need trimming, do it on the bench rather than in the wheel well. Keep the spare tire and jack mounting in mind, since the taller height can change how they fit.
- Test full steering lock
- Check clearance at full compression
- Inspect the inner fender
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4083B |
| UPC | 614901125245 |
| Lift | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arm brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Shock boots | Not included |
Vehicle fitment
It fits 1981–1989 Ford F-150 trucks. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A block and U-bolt rear lift with radius arm brackets changes both ends of the truck, so check the alignment and the driveline angles after installation. Confirm the brake lines reach at the new height before the wheels are refitted.

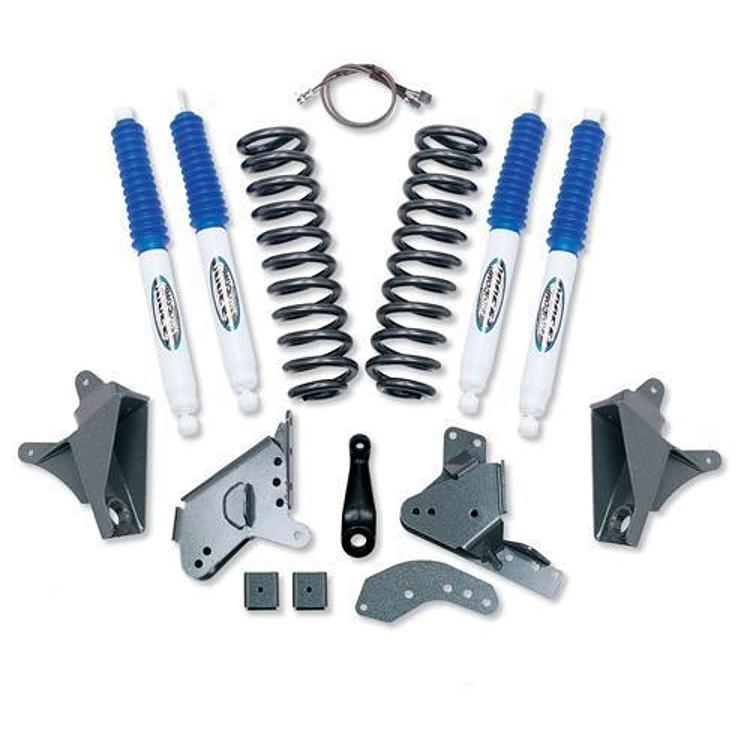

What’s included
The kit includes front coil springs, radius arm brackets, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
