Pro Comp 29 Series La Paz, 16x8 Wheel with 5 on 4.5 Bolt Pattern – Satin Black – 5029-6865

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 16x8 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 16×8 aluminum windowed wheel in satin black, from the 29 Series La Paz
  • 5 on 4.5 bolt pattern, center bore 83
  • Offset 0; backspacing 4.5
  • Part number PXA5029-6865

Description

Overview

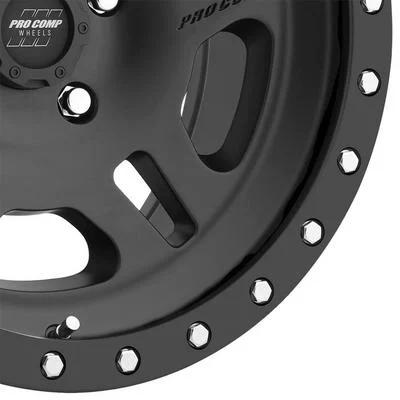

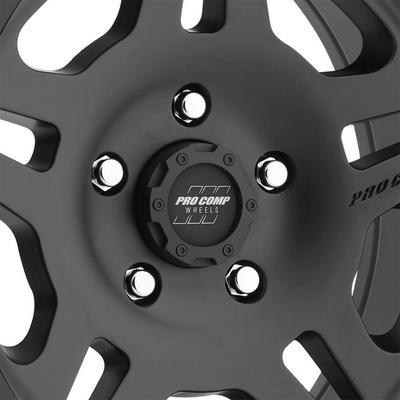

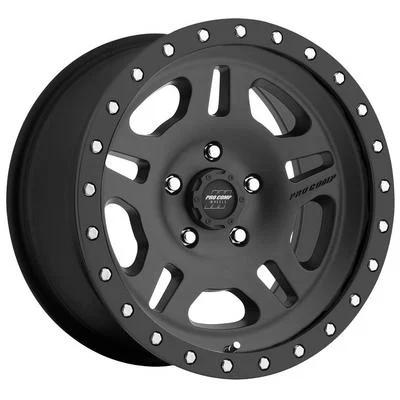

The Pro Comp PXA5029-6865 is a 16×8 aluminum wheel from the 29 Series La Paz line, with a windowed face and a satin black finish. It is built on a 5 on 4.5 bolt pattern with a center bore of 83, a 0 offset and a 4.5 backspacing.

Pro Comp describes its alloy wheels as cast with low-pressure technology, which the company describes as a strength-focused process. The La Paz is a windowed design, so the open face shows more of the brake assembly than a solid spoke wheel does.

The 5 on 4.5 pattern and 83 center bore decide the fit, and the 0 offset places the face near the centerline. The windowed design lets the brake assembly show through the face, so check caliper clearance on the truck.

The satin black finish and 8-inch width are the listed specifications for this 16-inch La Paz wheel.

Key features

  • Windowed face design
  • Satin black aluminum finish
  • 5 on 4.5 bolt pattern
  • Center bore 83
  • Offset 0 and backspacing 4.5

Windowed wheels off-road

A windowed face opens the back of the wheel to air, which helps brake components run cooler than they would behind a solid spoke face. The same openings let mud and grit pack in, so the inner barrel and the area behind the spokes need regular cleaning. Look for debris that has built up around the valve stem and the brake components after each trail run.

Because the face is open, clearance between the caliper, the brake rotor and the spokes is easy to judge at a glance. Any change in tire size, backspacing or suspension height can shift that clearance, so recheck it after changes. Smooth, sealed bead areas keep tires from losing pressure on rocky ground, and an inspection after a hard hit can catch bends before they cause a leak.

  • Rinse the inner barrel after mud runs
  • Check caliper clearance after suspension changes
  • Inspect the bead area after rock strikes

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5029-6865
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 4.5
Center bore 83
Offset 0
Backspacing 4.5
Style Windowed
Finish Satin black
Construction Aluminum
Series 29 Series La Paz

Vehicle fitment

This wheel is labeled universal fit by Pro Comp, so it is not built for one vehicle. Its 5 on 4.5 pattern and 83 center bore need to match your hub, and the 0 offset affects how the wheel sits in the fender.

Pick tires that match a 16-inch, 8-inch-wide rim. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel in the satin black finish. Check the package contents for a center cap before installing.

SKU: PXA5029-6865 Categories: ,

Questions & Answers

Will the PXA5029-6865 fit a 5 on 4.5 truck?

It is listed with a 5 on 4.5 bolt pattern, so it fits only hubs with that pattern. Confirm the 83 center bore and the 0 offset on your truck before ordering.

What size is the La Paz wheel?

It is a 16-inch wheel, 8 inches wide, with a 0 offset and a backspacing of 4.5. The windowed face is the design feature.

Does the wheel come with a center cap?

Check the box contents for a center cap before installing. Confirm the 5 on 4.5 pattern and 83 center bore on the hub before ordering.

Does a windowed wheel affect brake cooling or cleaning?

Yes, the open face lets air reach the brake assembly, but it also collects mud and grit. Rinse the inner barrel after off-road use, and recheck caliper clearance whenever tire size or suspension height changes.
