Overview

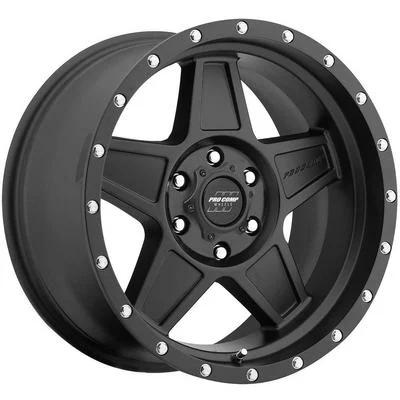

The Pro Comp 35 Series Predator 17×8.5 wheel, part number PXA5035-78583, is a 17-inch aluminum spoke wheel with an 8.5-inch width. It is finished in satin black, which the series name gives as 35 Series Predator satin black, and it uses a 6 on 5.5 bolt pattern.
Pro Comp casts its alloy wheels from aluminum using a low-pressure process for trucks and sport utility vehicles. This Predator has a 108 center bore, a 0 offset and a 4.75 backspacing. It is a universal fit wheel, so the hub bolt pattern and center bore need to be measured before choosing it.
Key features
- Low-pressure cast aluminum construction
- 17-inch diameter with an 8.5-inch width
- 6 on 5.5 bolt pattern
- Center bore 108
- Offset 0 and backspacing 4.75
- Satin black spoke design in the Predator series
Care and maintenance
Satin black aluminum shows scratches and brake dust differently from gloss finishes, so use a soft brush and a wheel-safe cleaner rather than abrasive pads. Inspect the bead seat and the inner barrel after rough trail use, looking for bends, cracks and gouges that could let air escape or weaken the wheel. Cosmetic chips can be touched up with matching paint, but bent or cracked wheels should be replaced rather than repaired.
Recheck wheel bolts and lug nuts after the first few drives on a new wheel, since the seat settles against the hub. Keep the lug nut seats clean and free of rust before mounting, and use the torque your vehicle requires. Balance the tires after mounting so vibration does not hide a wheel or bearing problem.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5035-78583 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 35 Series Predator |
Vehicle fitment
This wheel is not tied to a make, model or year. Check that the 6 on 5.5 pattern and 108 center bore match your hub, then confirm the 4.75 backspacing clears the brake caliper and inner suspension parts.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the 17-inch wheel sits on a 6 on 5.5 hub, bolt holes and center bore must both match. Test-fit the wheel with the brakes installed before driving.
What’s included
Before starting, compare the delivered parts with your installation plan.
