Overview

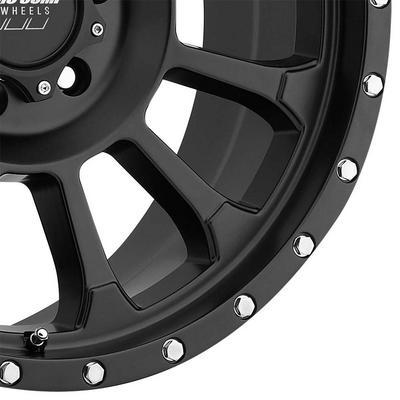

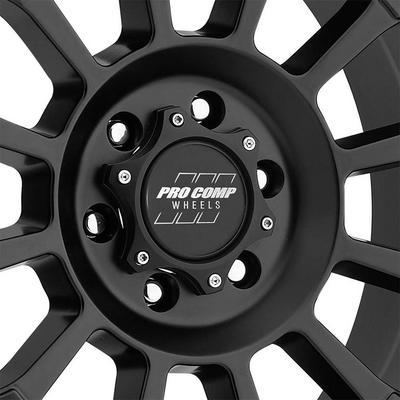

The Pro Comp 34 Series Rockwell 17×8.5 wheel, part number PXA5034-78536, is a 17-inch aluminum spoke wheel in satin black. Its bolt pattern is 6 on 135, and its center bore is 83.
The 34 Series Rockwell design is made with low-pressure cast aluminum. With a 0 offset and a 4.75 backspacing, this wheel is built for a six-lug 135 hub. It is universal fit and not matched to a specific vehicle.
Key features
- Low-pressure cast aluminum
- 17 inches in diameter, 8.5 inches wide
- 6 on 135 bolt pattern
- Center bore 83
- Offset 0, backspacing 4.75
- Satin black finish
Hub measurements that decide fit
The bolt pattern and center bore are the two numbers that decide whether a wheel mounts. Bolt holes must line up with the studs exactly, and the center bore should match the hub or be fitted with rings. A wheel with the wrong center bore can vibrate at highway speed even when the bolts go in.
Satin black wheels are often chosen for a subdued look on work trucks and off-road builds. After mounting, check the lug nuts after a short drive, since the seats can settle. Keep offset and backspacing in mind when the tire is changed to a different width.
- Confirm bolt pattern before buying
- Check center bore against the hub
- Re-torque lug nuts after a short drive
- Recheck clearance after a tire change
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5034-78536 |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 83 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 34 Series Rockwell |
Vehicle fitment
The wheel has no vehicle list and is universal fit. Compare its 6 on 135 pattern and 83 center bore with your hub, since those two numbers matter more than the overall size.
Confirm your vehicle’s year, model and trim before ordering.
Satin black gives the spoke face a non-glossy finish, and the wheel is cast from aluminum using Pro Comp’s low-pressure casting process. The 83 center bore and 6 on 135 pattern decide which hubs the wheel fits, so measure those before buying a set of wheels for a vehicle.
What’s included
A single 17×8.5 satin black wheel is supplied; caps and nuts are not included.
