Overview

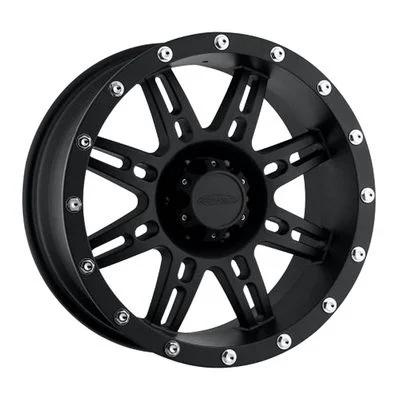

The Pro Comp PXA7031-7982 is a 17×9 split-spoke aluminum wheel in the 31 Series Stryker line, finished in matte black. It uses an 8 on 6.5 bolt pattern with a center bore of 131, an offset of -6 and a backspacing of 4.75.
This wheel shares its size, bore and offset with the 8 on 170 Stryker, so the bolt pattern is what separates the two. Pro Comp describes its alloy wheels as cast aluminum with low-pressure casting, and the Stryker’s split-spoke face gives the wheel its look.
The 8 on 6.5 pattern and 131 center bore must match the hub before ordering. The -6 offset and 4.75 backspacing set the position of the 9-inch wide wheel, so check fender and caliper clearance on the truck.
The matte black split-spoke face and aluminum construction are the listed features of this 17×9 Stryker.
Key features
- Split-spoke face
- Matte black finish
- 8 on 6.5 bolt pattern
- Center bore 131
- Offset -6
Comparing bolt patterns
Bolt patterns that look similar can differ enough to prevent a proper fit. An 8 on 6.5 pattern and an 8 on 170 pattern use the same count of studs but different spacing, so a wheel from one pattern will not sit correctly on the other. Measuring the distance across the studs is the most reliable way to confirm which pattern a hub uses before buying.
Adapters are sometimes offered to bridge a pattern difference. They add parts to the load path and change how the weight travels through the hub, so the safer approach is a wheel that matches the hub directly. If an adapter is ever considered, it must be rated for the truck’s load.
- Measure stud spacing across the hub
- Match stud count and center bore together
- Do not force a wheel onto a different pattern
- Confirm stud length before mounting
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-7982 |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | -6 |
| Backspacing | 4.75 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
Pro Comp uses a universal fit label for this wheel. An 8 on 6.5 pattern must match the hub exactly, so confirm the bolt pattern, 131 bore and -6 offset before buying.
Pick tires suited to a 17-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. No center cap is part of the package.
