Pro Comp 05 Series Torq Wheel, 17x9 with 5 on 5 Bolt Pattern – Matte Bronze – 9605-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 aluminum split-spoke wheel in matte bronze
  • 5 on 5 bolt pattern
  • Offset -6; backspacing 4.75
  • 05 Series Torq design

Description

Overview

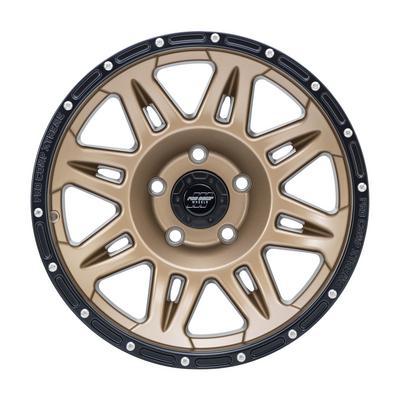

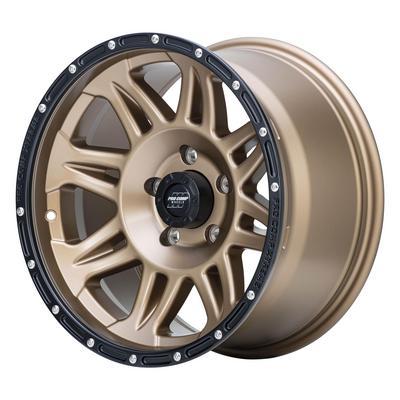

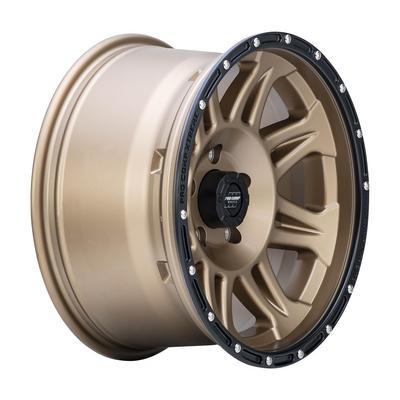

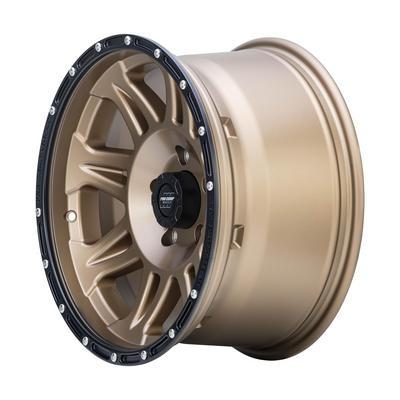

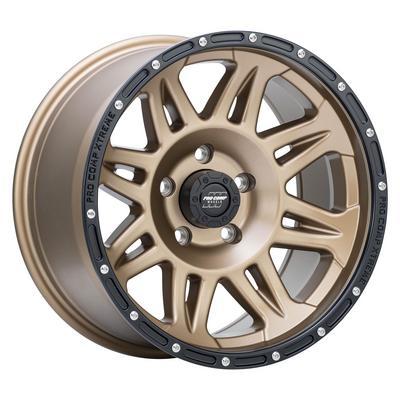

The Pro Comp PXA9605-7973 is a 17×9 matte bronze aluminum wheel from the 05 Series Torq line, with a split-spoke design. It has a 5 on 5 bolt pattern, an offset of -6 and a backspacing of 4.75.

The wheel is cast aluminum, and the Torq is built for performance trucks and sport utility vehicles. Confirm the hub bore on your truck before choosing this size.

Confirm the 5 on 5 bolt pattern, the offset of -6 and the backspacing of 4.75 on the hub, and check that the 9-inch width clears the fender and brake caliper before ordering.

Key features

  • Matte bronze finish
  • Split-spoke aluminum design
  • 5 on 5 bolt pattern
  • Offset -6

Wide wheels and clearance

A 9-inch wide wheel with negative offset pushes the tire outward, which can rub on the fender lip during articulation or when the suspension compresses. Measure clearance at full steering lock on each side and with the suspension compressed, since body lift, leveling kits and larger tires change the space available.

Spacers are sometimes used to correct offset, but they add load to the wheel studs and change the leverage on the hub. Thin spacers with hub-centric fit are preferred, and studs should be checked for stretch after installation. A wider wheel also changes the scrub radius, so steering effort and tire wear may shift slightly after the change.

  • Measure fender clearance at full steering lock
  • Check tire rub during suspension compression
  • Choose a tire sized for a 17-inch rim
  • Consider wheel spacers only with suitable studs

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA9605-7973
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Offset -6
Backspacing 4.75
Style Split spoke
Finish Matte bronze
Construction Aluminum
Series 05 Series Torq

Vehicle fitment

It is a universal-fit wheel. Check the 5 on 5 bolt pattern, the hub bore and the -6 offset against your truck before buying.

Tire size and load rating must suit a 17×9 wheel. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel. Inspect the package contents against your installation before starting.

SKU: PXA9605-7973 Categories: ,

Questions & Answers

Will the PXA9605-7973 fit a 5 on 5 truck?

It has a 5 on 5 bolt pattern, so it only fits hubs with that pattern. Confirm the hub bore and the -6 offset before buying.

How wide is this wheel?

It is 9 inches wide, with an offset of -6 and a backspacing of 4.75. The diameter is 17 inches.

Is a center cap included?

Check the package contents when the wheel arrives to see whether a center cap is included. Confirm the 5 on 5 pattern and hub bore before ordering.

How can I tell if a wider wheel is rubbing?

Look for scuffs or fresh marks on the inner fender lip, the tire sidewall or the frame near the tire after a drive. Test with a full turn and with the suspension compressed, since rubbing often appears only under those conditions.
