Overview
The Pro Comp K4105B is a 6-inch stage 2 coil spring lift with ES3000 front and rear shocks. It fits 1990–1996 Ford F-150 trucks, and the lift height range is 5 to 6.99 inches.
The front uses coil springs with radius arms and I beam brackets. The rear is raised with a block and U-bolt kit. A pitman arm corrects the steering, and extended length SS brake lines are included. The shock boots are not included.
Key features
- 6-inch lift, stage 2
- Front coil springs with radius arms
- I beam brackets
- Pitman arm steering correction
- Extended length SS brake lines
- Rear block and U-bolt lift
Before you lift
Coil spring lifts change ride height at the front, so the springs, shocks and steering linkage work differently than they did at stock height. Before installing, look over the existing brake lines, brake hoses, sway bar links and steering components, because longer lines and new geometry can put stress on parts that were not designed for the new height. Stock bump stops may also need attention once the truck sits higher.
Radius arms and I beam brackets set the front axle position, so the alignment should be checked after the work is complete. Rear block lifts change the driveline angle, and a vibration after installation is often a sign that the angle needs correction. Retighten all fasteners after the first few drives and inspect the shock mounts and brake lines at each service interval.
- Check brake line length and routing after installation
- Recheck driveline angles once the truck is back on the ground
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4105B |
| UPC | 614901125320 |
| Lift | 6 inches, stage 2 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Radius arm |
| Front lift | Coil springs with radius arms and I beam brackets |
| Rear lift | Block and U-bolt kit |
| Steering correction | Pitman arm |
| Front shocks | ES3000 |
| Rear shocks | ES3000 |
| Brake lines | Extended length SS |
| Shock boots | Not included |
Vehicle fitment
It fits 1990–1996 Ford F-150 trucks. Other years and Bronco models are outside its fit. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Radius arms and I beam brackets change the front geometry, so the alignment should be set after the kit is in. The rear block and U-bolt lift changes the driveline angles, which should be checked once the truck is back on the ground.

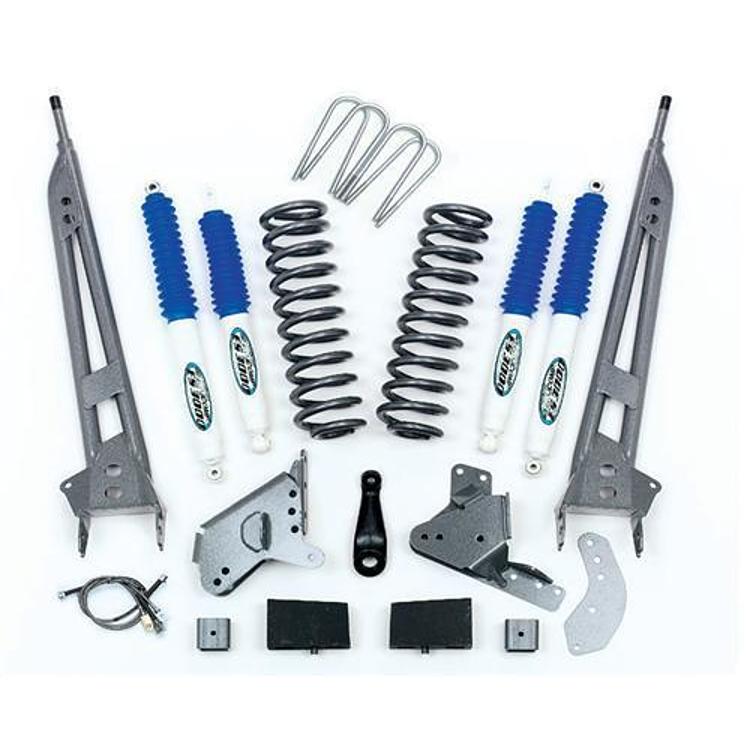

What’s included
The kit includes front coil springs, radius arms, I beam brackets, a pitman arm, extended length SS brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.
