Overview

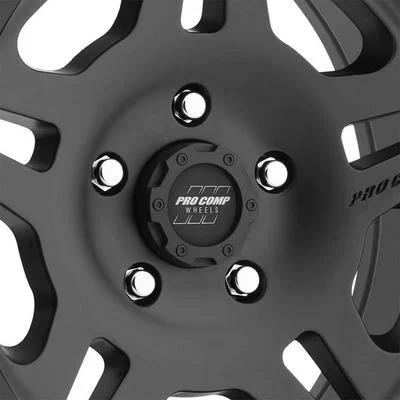

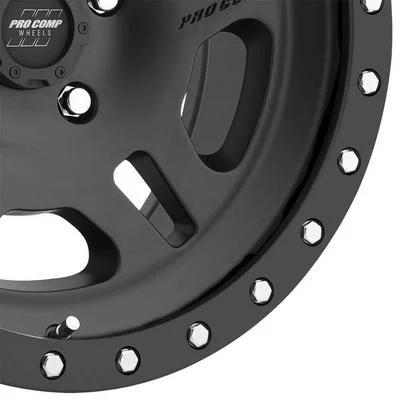

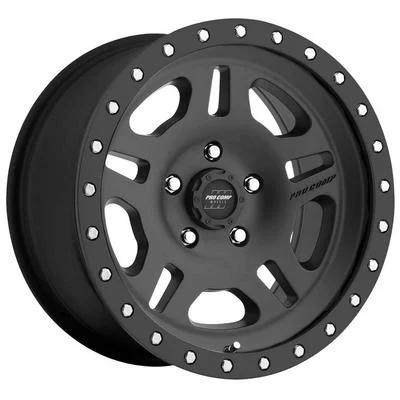

The Pro Comp PXA5029-78573 is a 17×8.5 aluminum wheel from the 29 Series La Paz line, with a windowed face and satin black finish. It is built on a 5 on 5 bolt pattern with a center bore of 108, an offset of 0 and a backspacing of 4.75.
This is the 17-inch member of the La Paz line and keeps the same windowed look as the smaller versions. The aluminum is low-pressure cast, and the 8.5-inch width gives a little more tire footprint than the 8-inch wheels in the line.
The 5 on 5 pattern and 108 center bore must match the hub. The 0 offset and 4.75 backspacing mean the face sits near the centerline, and the 8.5-inch width needs a tire sized for a 17-inch rim.
The windowed design and satin black finish define the look of this wheel, which is made from low-pressure cast aluminum.
Key features
- 17-inch windowed design
- Satin black aluminum finish
- 5 on 5 bolt pattern
- Center bore 108
- Offset 0 and backspacing 4.75
Tire sizing for 17-inch rims
A 17-inch rim with an 8.5-inch width suits a range of tire sizes, but the overall diameter of the tire matters as much as the rim. A taller or shorter tire changes ground clearance, gearing feel and speedometer reading. Check the tire’s load rating against the truck’s weight, and look at sidewall height to judge how the tire will respond on rough trails.
Off-road use adds other considerations. Lower tire pressures increase sidewall flex, which can roll a tire off the bead if the wheel and tire are not matched. Confirm the tire’s bead seat rating and inspect the bead after every trail run. If the new tire is much taller, plan to recalibrate the speedometer.
- Match load rating to the truck’s weight
- Compare overall diameter with the original tire
- Inspect the bead after low-pressure trail runs
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5029-78573 |
| Diameter | 17 inches |
| Width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 29 Series La Paz |
Vehicle fitment
Pro Comp labels this wheel universal fit, which means it is not matched to a specific truck. The 5 on 5 pattern, 108 bore and 0 offset need to be verified against your vehicle first.
Pick tires that suit a 17-inch rim that is 8.5 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel. Check the package contents for a center cap before installing.
