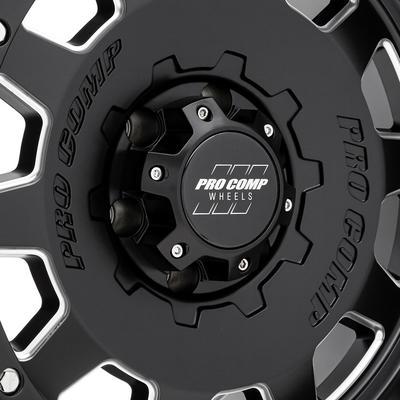

Pro Comp 60 Series Hammer, 17x9 Wheel with 6x5.5 Bolt Pattern – Satin Black Milled – 5160-7983

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 by 9 inch aluminum wheel in satin black, windowed style
  • 6 on 5.5 bolt pattern with a 108 center bore
  • Offset -6 and backspacing 4.75
  • Load rating 2500 to 3650 lbs per wheel.

Description

Overview

The Pro Comp 60 Series Hammer 17×9 wheel, part number 5160-7983, is a 17 inch by 9 inch satin black aluminum wheel with a windowed style and a 6 on 5.5 bolt pattern. It is a universal fit, so no year, make or model is attached to it.

The wheel is made with low-pressure casting and has a satin black finish.

Load ratings for this alloy line run from 2500 to 3650 lbs per wheel. The warranty transfers to a new owner.

Key features

  • Aluminum construction made by low-pressure casting
  • Windowed style in satin black
  • 17 inch diameter and 9 inch width
  • 6 on 5.5 bolt pattern with a 108 center bore
  • Offset -6 and backspacing 4.75
  • Load rating of 2500 to 3650 lbs per wheel.
  • Warranty described by Pro Comp as transferable

Choosing offset and fit

Offset and backspacing decide where the tire sits in the wheel well and how much room is left for the brake caliper and the suspension. A wheel that looks right on the hub can still rub if the offset moves the tire outward or the backspacing leaves too little space behind the mounting face. Measure the clearance with the tire you plan to run, since tire width and sidewall height change the fit.

Hub fit comes first. The bolt pattern must match the hub exactly, and the center bore should center the wheel on the hub rather than relying only on the lug nuts. Load ratings matter as well, so the wheel should be matched to the load the vehicle and tires will carry.

  • Confirm the lug seat type matches the lug nuts
  • Check tire width against the wheel width
  • Look for a hub-centric ring when the center bore is larger than the hub pilot
  • Re-torque lug nuts after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number 5160-7983
Series 60 Series Hammer
Diameter 17 inches
Width 9 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset -6
Backspacing 4.75
Style Windowed
Finish Satin black
Construction Aluminum
Load rating 2500 to 3650 lbs per wheel

Vehicle fitment

This wheel is a universal fit with no vehicle attached. Check the bolt pattern, center bore and offset against your hub and wheel well before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 6 on 5.5 bolt pattern and the 108 center bore against your hub before mounting. A -6 offset places the mounting face further outward than a positive-offset wheel, and the 4.75 backspacing also changes clearance to brake and suspension parts. Confirm tire and fender clearance with the tire you plan to run.

What’s included

One wheel. Not included: the tire.

SKU: PXA5160-7983 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp 5160-7983 use?

A 6 on 5.5 bolt pattern with a 108 center bore. Check both against your hub before mounting, because a wheel with a different pattern will not bolt on.

Is this wheel made for a specific vehicle?

It is a universal fit, so no year, make or model is named. Compare the bolt pattern, center bore and offset with your vehicle before ordering.

What does a -6 offset mean?

Offset is the distance from the wheel's mounting face to its centerline. A negative number such as -6 moves the mounting face outward, so the wheel sits further out than a positive-offset wheel of the same width.

How much weight can each wheel carry?

Pro Comp rates its alloy wheels from 2500 to 3650 lbs per wheel. Confirm that the rating meets the load your vehicle and tire combination will put on it.

Do I need hub-centric rings with this wheel?

Sometimes. If the wheel's center bore is larger than the hub pilot, a hub-centric ring fills the gap so the wheel centers on the hub instead of the lug nuts. Check the hub diameter against the center bore before mounting, and use rings only when the fit calls for them.
