Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4078B

Pro Comp Suspension

Shop Ford Bronco Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms for 1981–1989 Ford Bronco
  • Rear add-a-leafs with block and U-bolt hardware
  • Pitman arm, bump stop extensions and extended length brake lines
  • ES3000 front and rear shocks

Description

Overview

The Pro Comp K4078B is a 6-inch stage 2 coil spring lift for the 1981–1989 Ford Bronco. The front uses coil springs with radius arms, and the rear is raised with add-a-leafs. The lift height range is 5 to 6.99 inches.

ES3000 front and rear shocks are supplied, with bump stop extensions, a pitman arm for steering correction and extended length brake lines. The shock boots are not included.

Key features

  • 6-inch lift, stage 2
  • Front coil springs with radius arms
  • Rear add-a-leaf lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Stage 2 radius arm upkeep

Radius arms take the place of stock control arms, so the front axle moves along a fixed arc that the bushings must control. Over time the rubber softens and the mounts can work loose, which shows up as vague steering or a clunk when braking. Inspect the bushings and their hardware on a regular schedule and replace any that have cracked or separated.

A stage 2 build often pairs the radius arms with a fresh alignment and a close look at the steering linkage. After the rear add-a-leafs are installed, the driveshaft angles change and should be measured, since mismatched angles cause vibration. Keep a simple log of torque settings and inspection dates so trouble spots are easy to spot later.

Specifications

Brand Pro Comp Suspension
Part number K4078B
UPC 614901125214
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms
Rear lift Add-a-leafs
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford Bronco models. Confirm year, model and trim against your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms change the front axle location and caster, so the alignment should be set after installation. Check the rear driveline angles once the add-a-leafs are in, since the rear lift changes them.

What’s included

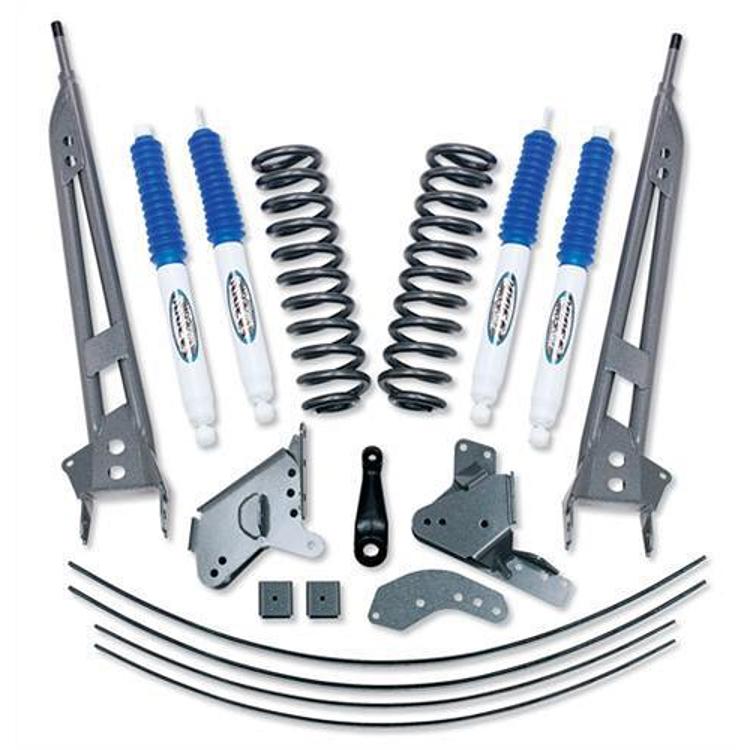

The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, rear add-a-leafs and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4078B Category:

Specification

Shipping weight 207.55 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford Bronco1981–1989Custom, Eddie Bauer, Ranger XLT, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4078B fit a 1987 Ford Bronco?

Yes. It fits 1981–1989 Ford Bronco models, which includes 1987. Read the trim details carefully and make sure your truck's configuration matches before ordering, since trims can differ across the years.

How does the K4078B differ from the K4077B?

It is a 6-inch stage 2 lift with radius arms at the front and add-a-leafs at the rear, while the 6-inch stage 1 version uses radius arm brackets at the front.

Are shock boots included with the K4078B?

No. Shock boots are not included with this 6-inch stage 2 Bronco kit, so any boots for the ES3000 shocks must be bought separately.

How can I tell if the radius arm bushings are worn?

Look for cracked or split rubber, metal-to-metal contact at the mounts and play when the front wheels are rocked. Steering wander, uneven tire wear and a knock when braking can also point to worn bushings, so inspect them promptly.
