Overview
The Pro Comp 6 Inch Lift Kit with ES9000 Shocks, part number K1144B, is a 6-inch knuckle lift. The front lift uses strut spacers and spindles, with front and rear crossmembers and compression struts. The rear uses a block, U-bolt and add-a-leaf kit.
The front shocks are reused OEM units, so confirm the shock setup before installing. The kit includes sway bar drop brackets, bump stops and brake line extension brackets, and the lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 knuckle lift
- Strut spacers and spindles
- Front and rear crossmembers
- Compression struts
- Sway bar drop brackets
- Bump stops
- Rear block, U-bolt and add-a-leaf kit
- Brake line extension brackets
Before you install a knuckle lift
A knuckle lift changes how the front axle and steering geometry sit under the truck, so it affects more than ride height. Strut spacers and new spindles shift the steering arms and kingpin angle, which is why alignment is part of the job rather than an optional extra. Plan to have the front end aligned soon after installation, and keep a record of the setting.
Many owners replace related parts at the same time. Brake lines are lengthened by extension brackets, so inspect hoses for tension or cracking. Sway bar links, ball joints and tie rod ends should be checked once the geometry has changed. Driveline angles also move with a lift, so inspect the U-joints after the first few drives.
- Check brake hoses for tension once the lift is in
- Inspect ball joints and tie rod ends after the first drives
- Re-torque lug nuts after the first short drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1144B |
| UPC | 614901122671 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Rear lift | Block, U-bolts and add-a-leaf |
| Front shocks | Reuse OEM |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Strut spacer and knuckle lifts change front geometry, so have the alignment and driveline angles checked after installation.
What’s included

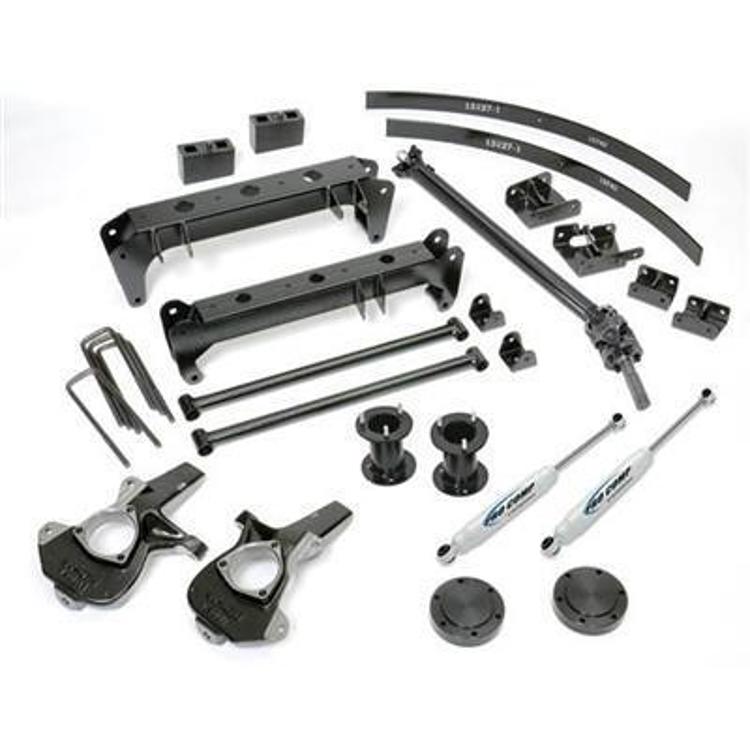

The kit includes strut spacers, spindles, front and rear crossmembers, compression struts, sway bar drop brackets, bump stops, brake line extension brackets, and a rear block, U-bolt and add-a-leaf kit.
