Overview
The Pro Comp 62201 is a 1.5 inch rear lift block kit for leaf spring vehicles from Pro Comp Suspension. It sits between the rear axle and the leaf springs to raise the back of the vehicle by 1.5 inches.
The lift blocks are tapered to help improve and retain driveshaft angles.
Key features
- 1.5 inch rear lift height
- Two rear lift blocks per kit
- Four U-bolts for mounting
- Eight thick flat washers and eight U-bolt nuts
Setting up a leaf spring lift
A rear lift block sits between the axle and the leaf springs, so it raises the rear without changing the spring pack itself. That gap changes the angle of the pinion and driveshaft, which is why tapered blocks are used on this type of kit. The extra height also moves the shocks, brake lines and bump stops into new positions, so they should be checked after mounting.
Re-check the U-bolt nuts after the first several drives, because the clamp settles as the leaf springs seat. Inspect the spring pack for cracks or sagging before adding a block, since a worn pack will not hold a lift well. A full check of the driveline and brake hoses after installation helps catch problems early.
- Check shock length and travel after mounting
- Inspect brake lines for stretch
- Re-torque U-bolt nuts after the first drives
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 62201 |
| UPC | 614901022476 |
| Type | Rear lift block kit with U-bolts |
| Lift height | 1.5 in |
| Quantity | 2 rear lift blocks |
| Hardware | 4 U-bolts, 8 thick flat washers, 8 U-bolt nuts |
Vehicle fitment
Confirm fit for your rear axle and leaf spring pack before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included

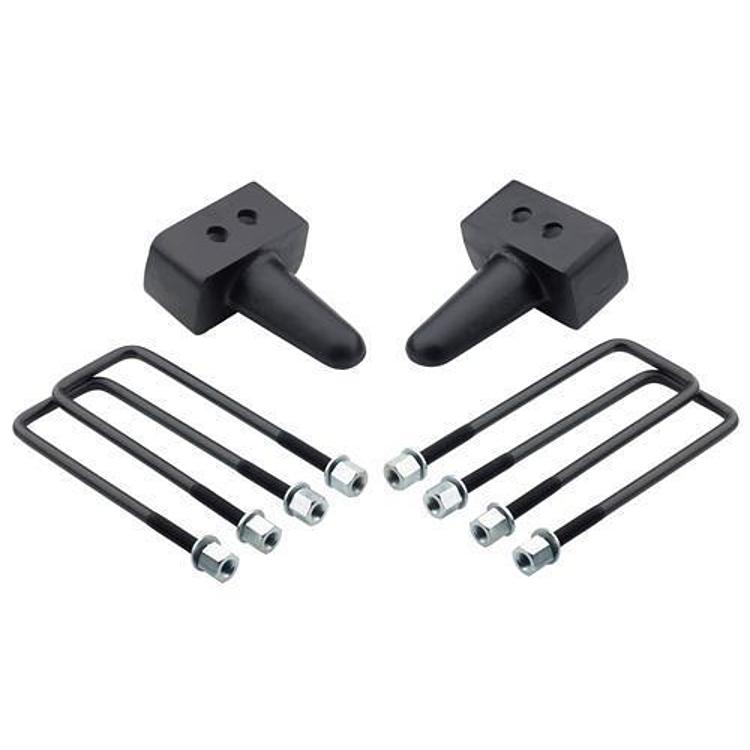

Two rear lift blocks, four U-bolts, eight thick flat washers and eight U-bolt nuts.
