Overview

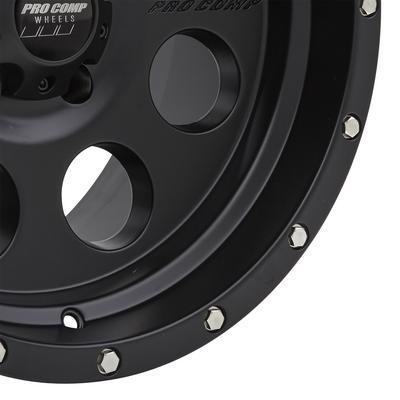

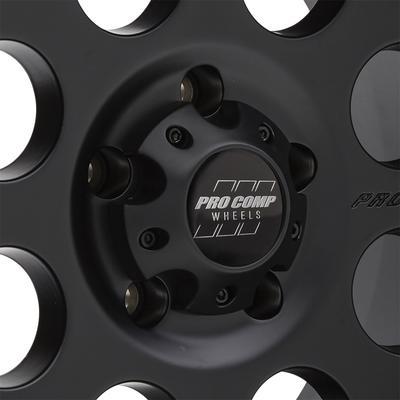

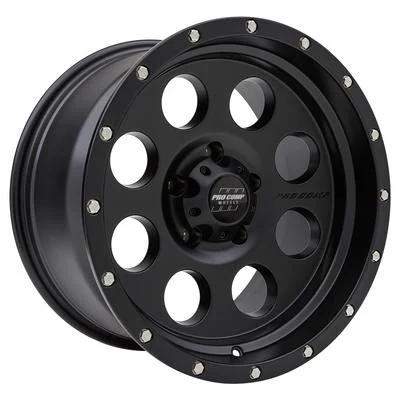

The Pro Comp 45 Series Proxy 17×9 wheel, part number PXA5045-7985, is a 17-inch aluminum wheel that is 9 inches wide. It has a Holes style, a 5 on 5.5 bolt pattern and a satin black finish.
The wheel has a 125 center bore, a -6 offset and a backspacing of 4.75. It is low-pressure cast and carries a load rating of 2500 to 3650 lbs per wheel. It is a universal fit wheel, so confirm fit for your vehicle’s year, model and trim before ordering.
Key features
- Low-pressure cast aluminum
- 17 inches in diameter, 9 inches wide
- 5 on 5.5 bolt pattern
- Center bore 125
- Offset -6 and backspacing 4.75
- Holed face with satin black finish
Matching a 5 on 5.5 hub
A 5 on 5.5 bolt pattern is a different layout from a plain 5 on 5 pattern, so it is worth measuring the hub before any wheel is mounted. Lug holes that look similar can have different bolt circles, and a mismatch will keep the wheel from seating flat against the hub. Lug seat style matters too, since a seat that does not match the wheel’s holes can loosen under load.
Offset and backspacing control how far the wheel sits inside or outside the fender. A negative offset pushes the face outward, which can reduce clearance at the brake caliper or suspension on some setups. Tire width and sidewall height add to that, so check the full stack with the tire mounted.
- Measure the hub before ordering
- Confirm the lug seat type
- Recheck lug torque after the first drive
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5045-7985 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 125 |
| Offset | -6 |
| Backspacing | 4.75 |
| Load rating | 2500 to 3650 lbs per wheel |
| Style | Holes |
| Finish | Satin black |
| Construction | Aluminum |
| Series | 45 Series Proxy |
Vehicle fitment
This wheel has no vehicle list and is universal fit. Match the 5 on 5.5 pattern and the 125 center bore to the hub, and check that the -6 offset clears the brake and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the bolt pattern is 5 on 5.5 rather than 5 on 5, confirm the hub layout with a measurement before mounting. Check the outer clearance with the wheel installed.
The 125 center bore and 5 on 5.5 pattern must match the hub before the wheel is mounted. The -6 offset places the face outward, so the fender and brake caliper should be checked once the wheel is on the hub.
The satin black holed face is the finish on this version.
What’s included
The package is one 17×9 satin black wheel. Check the package contents against your installation before starting.
