Power Trax Dana 35 27 Spline 3.54 Carrier and Up Grip PRO Traction System – GT443527

Power Trax

Shop Jeep Cherokee XJ Differentials on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Power Trax Grip PRO traction system for a Dana 35 rear axle with 27 splines and 3.54 carrier and up (part number GT443527)
  • Progressive, throttle-controlled traction from 3×2 spiral gears
  • Fully assembled; no friction plates or friction modifier
  • Use 80W-90 GL-5 petroleum gear oil, not friction modifiers

Description

Overview

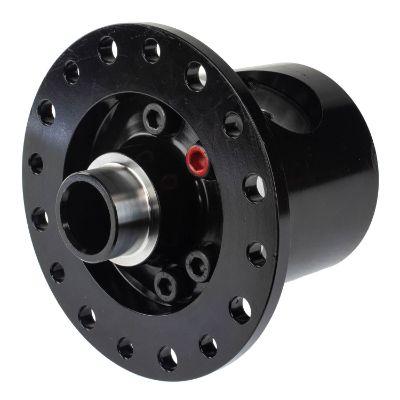

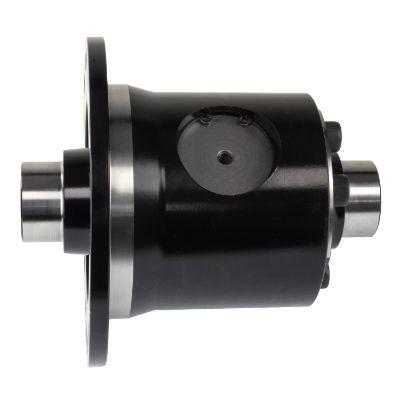

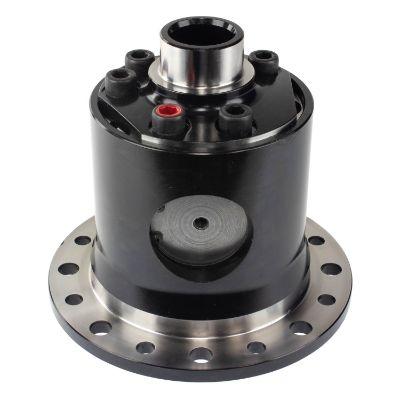

The Power Trax Dana 35 27 Spline 3.54 Carrier and Up Grip PRO Traction System, part number GT443527, is a limited slip differential for a rear Dana 35 axle with 27 splines and a 3.54 carrier or higher. It has a fully machined, forged steel case and uses 3×2 spiral gears for its traction action.

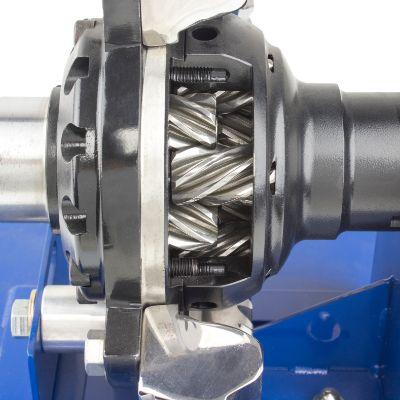

The Grip PRO uses 3×2 spiral gears to deliver progressive, variable traction. The amount of traction depends on throttle input, so the driver controls how much is applied. It suits situations where finesse matters as much as brute traction, on the road, in rain and snow, and on the track. The unit comes fully assembled, and because it has no friction plates, no friction modifier additive is needed.

Power Trax says its traction systems are the ideal solution for just about any light truck, sport utility or muscle car on the road today, for daily commuting, recreation and work.

Key features

  • Progressive, variable traction from 3×2 spiral gears
  • Traction controlled by throttle input
  • Smooth operation of a limited slip with a fully machined, forged steel case
  • Fully assembled, with no friction plates
  • Designed for use on the road, in rain and snow, and on the track
  • Rear axle location

Choosing the right setup

A limited slip with spiral gears behaves differently from a fully locking unit. Traction builds with throttle and wheel speed difference rather than appearing all at once, so the feel on the road is closer to a standard differential. Think about how the vehicle will be used before deciding, especially if it spends time in snow, mud or on the track.

Gear oil is a key part of keeping this type of unit working correctly. Use the petroleum-based oil this unit calls for, and avoid adding friction modifiers from other sources. Rear axle work often comes with a new cover gasket and fresh fluid, so plan those items together.

  • Match the axle spline count and carrier before ordering
  • Plan fresh gear oil at installation
  • Inspect the ring gear bolts after the first drives

Specifications

Brand Power Trax
Part number PTXGT443527
Popular axle manufacturer Dana
Axle location Rear
Axle type Dana 35
Axle spline 27 splines
Carrier 3.54 and up
Axle shaft diameter 1.18 inches
Ring gear bolts 10
Cover bolts 10
Differential case design Dana 35
Differential type Limited slip assembly
Gear oil 80W-90 petroleum-based GL-5 (or higher)

Vehicle fitment

It fits these Jeep models: 1984 to 2001 Jeep Cherokee (XJ), 1986 to 1992 Jeep Comanche, 1999 to 2004 Jeep Grand Cherokee (WJ), 1993 to 1998 Jeep Grand Cherokee (ZJ), 2002 to 2003 Jeep Liberty (KJ), 2004 to 2006 Jeep Wrangler LJ Unlimited, 1997 to 2006 Jeep Wrangler TJ and 1987 to 1995 Jeep Wrangler YJ. Check your year, model and trim before ordering.

The list covers Jeep models only. The Wrangler entries include the LJ and TJ, and no JK or JL models appear. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use 80W-90 petroleum-based gear oil with a GL-5 or higher rating. Power Trax says friction additives and friction modifiers should not be used, and that synthetic oils and oils containing friction modifiers are not recommended. Because there are no friction plates, no friction modifier is needed.

What’s included

The unit comes fully assembled. Check the package contents against your installation before starting, and have gear oil and hardware on hand.

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–2001Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Comanche1986–1992Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi
Jeep Liberty (KJ)2002–2003Limited, Renegade, Sport
Jeep Wrangler (LJ)2004–2006Unlimited
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, SE, Sahara, Sport, X
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Power Trax GT443527 fit a Jeep Wrangler TJ?

Yes. It fits the 1997 to 2006 Jeep Wrangler TJ. The unit is made for a rear Dana 35 axle with 27 splines and a 3.54 carrier and up, so confirm your axle matches before ordering.

What gear oil should be used with the Grip PRO?

Power Trax says to use 80W-90 petroleum-based gear oil with a GL-5 or higher rating. Friction modifiers should not be used, and synthetic oils are not recommended.

Does the Grip PRO need a friction modifier?

No. The unit comes fully assembled with no friction plates, so no friction modifier additive is needed. Friction modifiers should not be used with this unit.

How often should the gear oil in a limited slip be changed?

Change it on the schedule your vehicle service guide and driving conditions call for, and sooner if the oil looks dark or smells burnt. Stay with the oil type this unit calls for, and drain and refill with fresh oil of the same grade.
