Power Trax GM 8.5/8.6 Inch 30 Spline 2.73 Carrier and Up Grip LS Traction System – LS201030

Power Trax

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits GM 8.5-inch and 8.6-inch 10-bolt axles
  • Limited-slip assembly with 30 axle splines
  • Lists Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon and Escalade
  • Carbon-fiber and steel friction plates
  • Part number PTXLS201030

Description

Overview

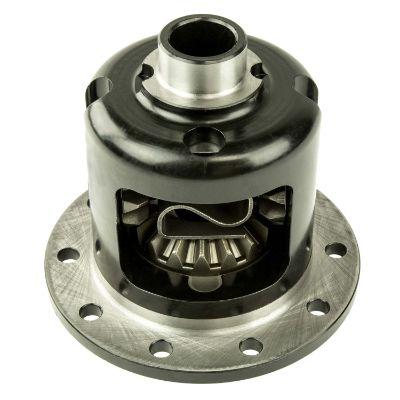

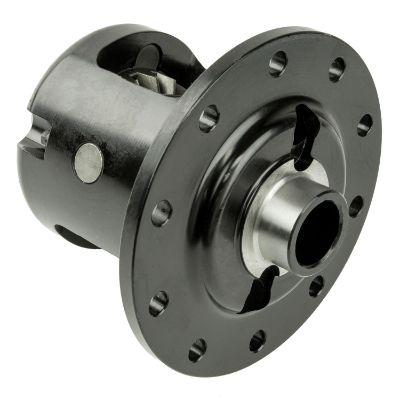

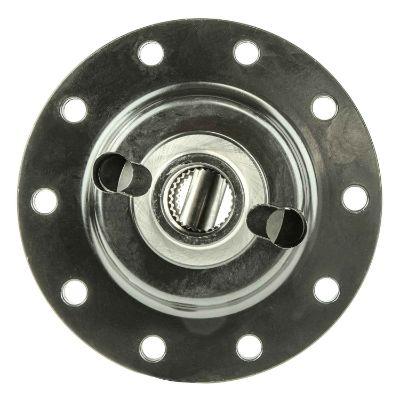

The Power Trax Grip LS, part number PTXLS201030, is a limited-slip differential for GM 8.5- and 8.6-inch 10-bolt rear axles with 30 axle splines and a 1.31-inch axle shaft diameter. It is made for a 2.73 carrier and up. It fits a long run of Chevrolet, GMC, Cadillac, Buick, Hummer and Isuzu trucks and SUVs, most of them from the early 2000s.

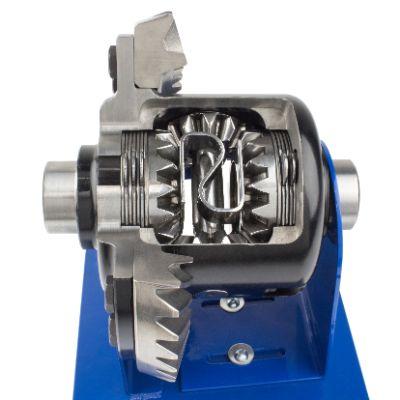

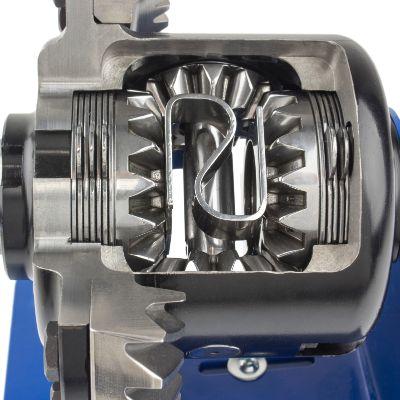

The Grip LS uses carbon-fiber and steel friction plates inside a fully machined case, with S-spring preloading. It combines smooth limited-slip operation with the strength of a complete case, and it is designed to be streetable and consistent. The unit comes fully assembled and can be rebuilt because its friction plates sit on machined internal gears. It suits light trucks, sport utility vehicles and muscle cars, for daily commuting, recreation and work.

Key features

  • Carbon-fiber and steel friction plate limited-slip design
  • Fully machined, complete case with S-spring preload
  • Comes fully assembled and is fully rebuildable
  • 30 axle splines for GM 8.5- and 8.6-inch axles
  • 10 ring gear bolts and 10 cover bolts

Setting up the carrier

Installing a complete differential assembly means the carrier must be set up with care. Ring and pinion contact, bearing preload and backlash all affect how smoothly the gears run and how long they last. Those settings should be checked with the right tools and measured against the housing before the truck returns to the road.

When the carrier is out, it is a good time to inspect the pinion bearings and seals, the axle bearings and the cover gasket. Replacing worn parts during the job saves having to open the axle again. Refill with the gear oil that the axle calls for, and check the level after the first short drive.

  • Check ring and pinion contact before closing up
  • Inspect pinion bearings and seals while open
  • Refill with the correct gear oil

Specifications

Brand Power Trax
Part number PTXLS201030
Product line Grip LS traction system
Differential type Limited-slip assembly
Axle type GM 10-bolt 8.5/8.6-inch
Axle location Rear
Axle spline count 30 splines
Axle shaft diameter 1.31 inches
Ring gear bolts 10
Cover bolts 10
Carrier (per title) 2.73 carrier and up
Fitment type Direct fit

Vehicle fitment

It fits the Chevrolet Silverado 1500 from 2001 to 2020, Silverado Classic (2007), Silverado 1500 HD (2001 to 2003 and 2005 to 2006), Tahoe and Suburban 1500 and 2500 from 2001 to 2013, Avalanche (2002 to 2013), Blazer (2001 to 2005), Colorado (2007 to 2012), S10 (2001 to 2004), Express 1500 (2001 to 2013), and Trailblazer (2002 to 2009). It fits the GMC Sierra 1500 from 2001 to 2020, Yukon from 2001 to 2013, Canyon from 2004 to 2012, Envoy from 2002 to 2009, and Sonoma from 2001 to 2004. Cadillac Escalade, Escalade ESV and Escalade EXT (2002 to 2013), Buick Rainier (2004 to 2007), Hummer H3 (2006 to 2010), Isuzu Ascender (2003 to 2008) and Saab 9-7x (2005 to 2009) are also covered. Check your year, model and trim before ordering.

Close vehicles that are not on the list include Silverado and Sierra models from 2021 on. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The Grip LS is a complete differential assembly for the carrier, so the ring and pinion setup and bearing preload must match the housing. Have a qualified axle shop install it and verify the setup before driving the truck.

What’s included

The unit comes fully assembled. Check the package contents for carrier bolts, bearings and other hardware before starting work.

Fitment

VehicleYearsTrims
Buick Rainier2004–2007CXL, CXL Plus
Cadillac Escalade2002–2013Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium
Cadillac Escalade ESV2003–2013Base, Luxury, Platinum, Premium
Cadillac Escalade EXT2002–2013Base, Luxury, Premium
Chevrolet Avalanche2007–2013Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ
Chevrolet Avalanche 15002002–2006Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71
Chevrolet Blazer2001–2005Base, LS, LT, Trailblazer, Xtreme, ZR2
Chevrolet Colorado2007–2012LS, LT, WT
Chevrolet Express 15002001–2013Base, LS, LT
Chevrolet S102001–2004Base, LS, Xtreme, ZR2, ZR5
Chevrolet Silverado 15002001–2020Base, Custom, Custom Trail Boss, High Country, Hybrid, LS, LT, LT Trail Boss, LTZ, RST, SS, SSV, WT, XFE, Z71
Chevrolet Silverado 1500 Classic2007Hybrid, LS, LT, SS, WT
Chevrolet Silverado 1500 HD2001–2003, 2005–2006Base, LS, LT
Chevrolet Silverado 1500 HD Classic2007LT
Chevrolet SSR2003–2006Base
Chevrolet Suburban 15002001–2013Base, LS, LT, LTZ, Z71
Chevrolet Suburban 25002001–2013Base, LS, LT, LTZ
Chevrolet Tahoe2001–2013Base, Hybrid, LS, LT, LTZ, PPV, SSV, Z71
Chevrolet Trailblazer2002–2005, 2007–2009Base, LS, LT, LTZ, North Face, SS
Chevrolet Trailblazer EXT2002–2006LS, LT, North Face
GMC Canyon2004–2012SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE
GMC Envoy2002–2009Denali, SLE, SLT
GMC Envoy XL2002–2006Denali, SLE, SLT
GMC Envoy XUV2004–2005SLE, SLT
GMC Jimmy2001Diamond Edition, SL, SLE, SLS, SLT
GMC Savana 15002001–2013Base, LS, LT, SLE, SLT
GMC Sierra 15002001–2020AT4, Base, C3, Denali, Elevation, HT, Hybrid, SL, SLE, SLT, WT, XFE
GMC Sierra 1500 Classic2007Denali, Hybrid, SL, SLE, SLT, WT
GMC Sonoma2001–2004SL, SLE, SLS
GMC Yukon2001–2013Denali, Denali Hybrid, Hybrid, SL, SLE, SLT
GMC Yukon XL 15002001–2013Denali, SL, SLE, SLT
Hummer H32006–2010Adventure, Alpha, Base, Championship Series, Luxury, X
Hummer H3T2009–2010Alpha, Base
Isuzu Ascender2003–2008Base, LS, Limited, S
Saab 9-7x2005–20094.2i, 5.3i, Aero, Arc, Linear

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Power Trax PTXLS201030 fit a 2010 Chevrolet Silverado 1500?

Yes. It fits the Chevrolet Silverado 1500 from 2001 through 2020, so a 2010 model is covered. It is made for GM 8.5- and 8.6-inch 10-bolt axles with 30 splines, so check your axle before ordering.

What axle does the Grip LS fit?

It fits a GM 10-bolt axle in the 8.5- and 8.6-inch sizes, with 30 axle splines and a 1.31-inch axle shaft diameter. It is made for a 2.73 carrier and up.

Is this unit rebuildable?

Yes. The friction plates sit on machined internal gears, so the unit can be taken apart and rebuilt. It comes fully assembled from the factory.

Should the ring and pinion be replaced with a new limited slip?

Replace the ring and pinion only if it shows wear, pitting or noise, or if the gear set does not match the new carrier. Many installers replace the pinion bearings and seals when the carrier is opened, since that is a good time to inspect them.
