Overview

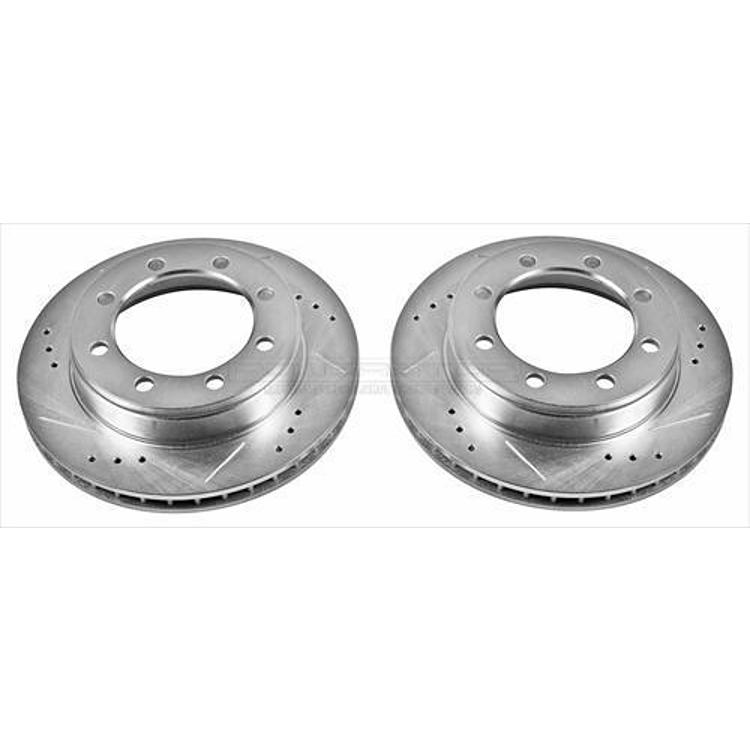

The Power Stop AR8553XPR is a front slotted and cross-drilled brake rotor for 1995–1997 Ford F-250 and F-350 trucks, the 1997 F-250 HD and the 1999 F-250 Super Duty. The AR8553XPR is made for the front axle, uses cross-drilled holes together with slots, and arrives coated.
Power Stop machines each rotor using Tru-Cast technology and mill balances it, holding run out within 0.0015 and a DTV tolerance specification within 0.005.
The AR8553XPR is a coated, direct-fit rotor, and Power Stop highlights its mill balancing, the zinc plated finish and the slots that keep the pad contact patch clean.
The drilled and slotted design pairs cooling from the holes with slots that sweep away gas and dust, which suits street and day track driving.
Key features
- Cross-drilled holes for cooling
- Rounded slots clear water, gas and dust
- Silver zinc plating resists rust
- G3000 grade casting
- Tru-Cast precision machining
- Beveled, precision-drilled holes
- Reduces brake fade
- Evolution rotor, mill balanced
- Run out within 0.0015, DTV tolerance within 0.005
- Direct-fit design
Front axle considerations
The front brakes do most of the stopping on many trucks, so the front rotors often wear faster than the rears. On an older truck like this one, check wheel bearings, the hub face and the caliper slide pins at the same time as the rotor, because a loose bearing or a seized slide will wear a new rotor unevenly.
Surface rust on the hub mounting face is common in older trucks and can cause a rotor to sit off-square. Clean the hub with a wire brush, remove any rust ridge, and check the lug studs before fitting the new part. Use fresh pads matched to the rotor and bed them in gently before any heavy towing.
- Inspect the hub face for rust ridges
- Check wheel bearings for play
- Replace pads and hardware together when the rotor is changed
Specifications
| Brand | Power Stop |
|---|---|
| Part number | AR8553XPR |
| UPC | 792088552877 |
| Type | Slotted and cross drilled |
| Position | Front |
| Coating | Coated |
| Finish | Silver zinc plated |
| Material | G3000 grade casting |
| Machining | Tru-Cast precision machined, mill balanced |
| Tolerances | Run out within 0.0015; DTV within 0.005 |
| Drill holes | Beveled and precision drilled |
| Slots | Rounded slots sweep water, gas and dust |
| Cooling | Drilled holes can keep rotors up to 180°F cooler. |
| Line | Evolution |
| Fit | Direct fit |
Vehicle fitment
It is a front rotor only and fits 1995–1997 Ford F-250 and F-350 trucks, the 1997 F-250 HD and the 1999 F-250 Super Duty. A 1998 F-250 and 2000-and-newer Super Duty trucks are not covered, so confirm your vehicle’s year, model and trim before ordering.
The AR8553XPR is listed only for those years, so a 1998 F-250 or a 2000 and newer Super Duty is not on its list, and it is a front rotor only. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the AR8553XPR is slotted and cross drilled, new brake pads and clean hub faces help the rotor seat and wear evenly on the front axle.
