Overview

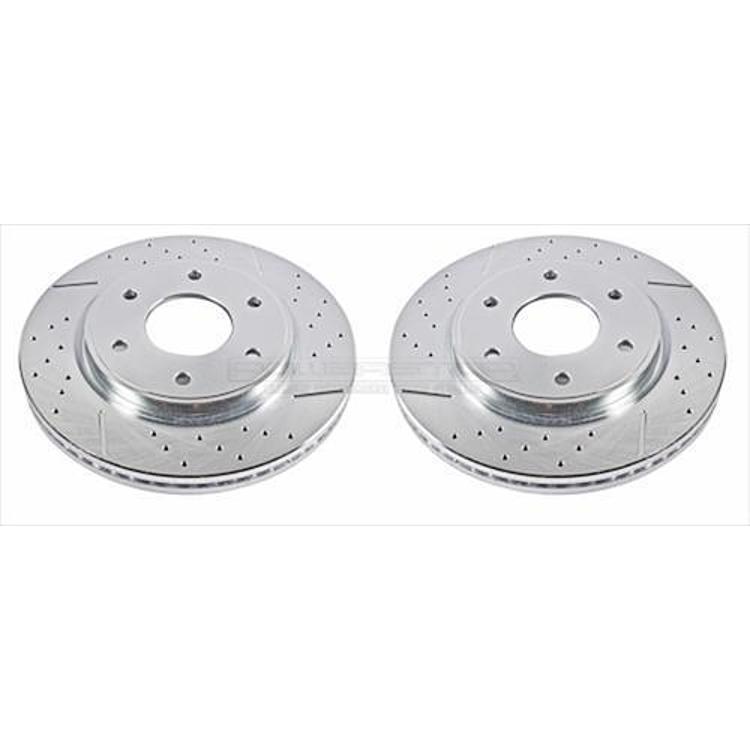

The Power Stop JBR1161XPR is a front slotted and cross-drilled brake rotor for the 2005–2006 INFINITI QX56, 2005–2006 Nissan Armada and 2005–2007 Nissan Titan. Drilled holes help the rotor shed heat during hard stops, and slots clear gas, dust and water from between the pad and the rotor.
It is for owners of the 2005–2006 INFINITI QX56, 2005–2006 Nissan Armada and 2005–2007 Nissan Titan who want a front rotor with a slotted and cross-drilled face.
Slots keep refreshing the pad surface as the wheel turns, which is why slotted rotors are often paired with pads made for them.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- Tru-Cast precision machining
- Designed to reduce brake fade
- Beveled, precision-drilled holes to help hold temperatures down in extreme braking
- G3000 grade cast
- Slots keep a clear contact patch between pad and rotor
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- Coated rotor
Working on full-size trucks
Full-size pickups and large SUVs carry heavy loads, so their front brakes are built to work hard under frequent stops. Towing, steep grades and loaded beds all push the rotor toward higher temperatures, and that is where a drilled and slotted face can help clear gas and debris from the pad area. Choosing pads with a suitable heat range matters just as much.
Front rotors on these trucks are often replaced with the pads at the same service, and the two should be matched to each other. Check the hub, the caliper slides and the brake hoses while the rotor is off. Replace any part that shows wear, leaks or corrosion before reassembly.
- Replace rotors in pairs across the front axle
- Inspect caliper slide pins for smooth movement
- Check the hub face for rust before mounting
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR1161XPR |
| UPC | 792088558152 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It fits the 2005–2006 INFINITI QX56 (Base), the 2005–2006 Nissan Armada (LE, SE, SE Off-Road) and the 2005–2007 Nissan Titan (LE, SE, XE).
Measure the rotor being removed for diameter, thickness, bolt pattern and weight before ordering.
The QX56 and Armada cover 2005–2006 and the Titan covers 2005–2007; later years fall outside this part number. Check your vehicle’s year, model and trim carefully before ordering.
Installation notes
Rotors are normally replaced in pairs across an axle so the left and right sides wear evenly.
What’s included
The package is a single front brake rotor.
Not included: Pads, calipers and hardware are separate items and need to be sourced before installation.
