Overview

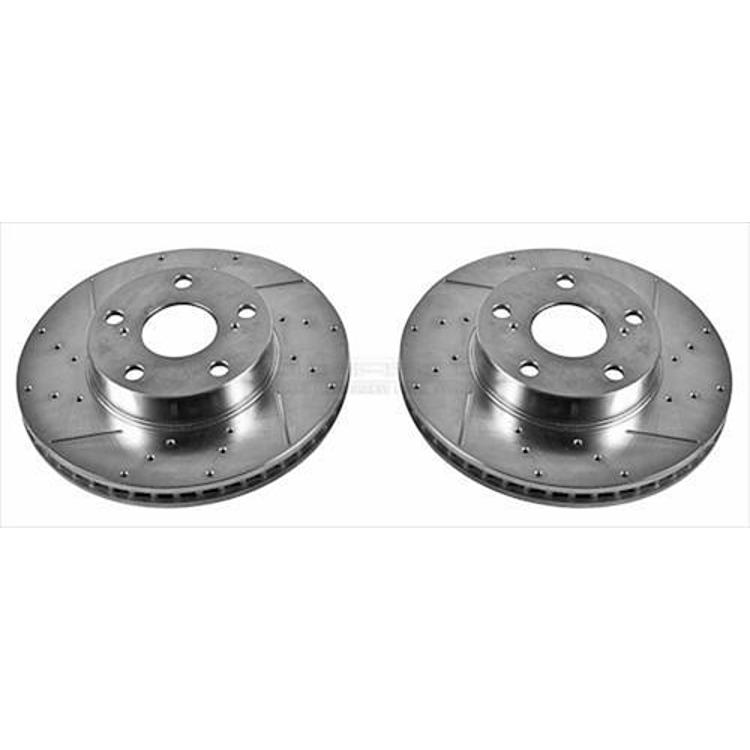

The Power Stop JBR1120XPR is a front slotted and cross-drilled brake rotor for the 2005–2015 Toyota Tacoma. Power Stop positions drilled and slotted rotors as a performance upgrade over a plain replacement disc.
It is for owners of the 2005–2015 Toyota Tacoma who want a front rotor with a slotted and cross-drilled face rather than a plain disc.
Heat management is the main reason for drilled and slotted designs: braking turns motion into heat, and the rotor has to shed it.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- G3000 grade cast
- Slots keep a clear contact patch between pad and rotor
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- Coated rotor
- Rounded slots that sweep water, gas and dust from the pad contact patch
- Silver zinc plated to shield against rust during normal operation
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
Towing, trails and rotor life
A front rotor on a midsize pickup works through a wide range of loads, from empty highway driving to towing and off-road trips where mud and grit get into the brakes. Slots help push that debris out of the pad area, but they cannot stop grit from wearing the pad, so keep the caliper and hub clean when you rinse the truck.
Rotor life depends on pad choice, driving style and how often the vehicle sees heavy loads. Check rotor thickness at every pad change, watch for a lip at the outer edge of the friction face, and replace any rotor with deep scoring. Inspect the brake hoses and caliper while the rotor is off, since a leaking hose can reduce braking.
- Inspect the caliper slide pins for smooth movement
- Replace pads in matched sets on the same axle
- Keep brake fluid and grease away from the friction surface
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR1120XPR |
| UPC | 792088917607 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It fits the 2005–2015 Toyota Tacoma in Base, TRD Pro and X-Runner trims.
Take diameter, thickness, bolt pattern and weight readings from the old rotor and compare them before buying.
Only the 2005–2015 Tacoma is listed; the 1995–2004 Tacoma and the 2016 and later models are not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Inspect the caliper and brake hoses while the rotor is off, and replace worn parts before reassembly.
What’s included
The package is one front brake rotor with no additional parts.
Not included: Pads, calipers and mounting hardware are needed separately.
