Overview

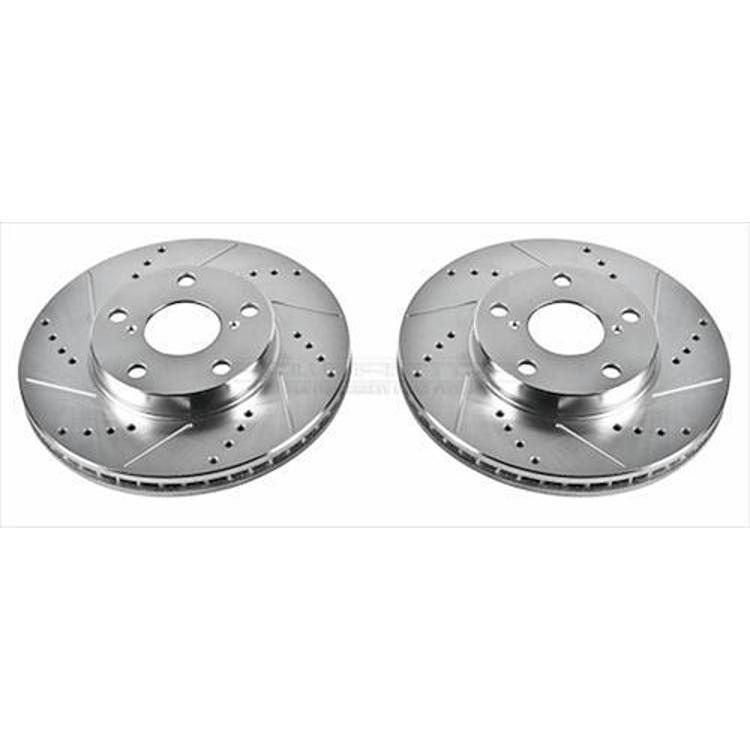

The Power Stop JBR974XPR is a front cross-drilled and slotted brake rotor for the 2001–2005 Toyota RAV4. As an Evolution series rotor, it replaces the factory front rotor with a drilled and slotted design.
The slots clear water, gas and dust from the contact patch, while the beveled drilled holes help manage temperature during extreme braking. The rotor is G3000 grade cast, mill balanced and silver zinc plated.
On a rotor, run out is how much the face wobbles as it turns, and DTV is disc thickness variation. Power Stop gives run out within 0.0015 and DTV tolerance within 0.005 for the JBR974XPR. Direct fit means it takes the place of the factory rotor without modification.
The drilled holes and the slots do different work. The beveled, precision-drilled holes keep temperatures down, the rounded slots clear the contact patch of water, gas and dust, and the combination is designed to reduce fade and suit custom or factory wheels.
Key features
- Front-position rotor with cross-drilled holes that keep it up to 180°F cooler.
- Rounded slots to keep the pad contact patch clean
- Beveled, precision-drilled holes for hard braking
- Run out within 0.0015 and DTV tolerance within 0.005
- Mill balanced Evolution rotor, G3000 grade
- Silver zinc plating shields against rust during normal operation
- Reduces fade
Front pads and rotor wear
On a compact crossover like the RAV4, front brakes handle most of the stopping force, so the front rotors wear faster than the rears. Slots and drilled holes change how the friction surface sheds heat and debris, but the pads still set the wear rate. Choosing a pad compound that suits typical driving keeps the drilled faces from glazing.
Front rotors commonly fail through thickness loss, edge lipping or heat cracks around the holes. Check the outer edge for a ridge and look at the face for deep grooves at every pad change. A pulsing pedal often points to uneven thickness or a dirty hub face rather than a rotor defect.
Keep the hub and wheel mounting surfaces clean whenever the rotor is removed, since rust or debris can cause runout. Tighten the wheel fasteners evenly and recheck them after the first few drives.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR974XPR |
| UPC | 792088561138 |
| Product type | Brake rotor, front |
| Rotor design | Slotted and cross drilled |
| Casting grade | G3000 |
| Coating | Coated (silver zinc plated) |
| Location | Front |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2001–2005 Toyota RAV4 at the front axle only.
RAV4 model years from 2006 onward are not covered. Check your year, model and trim before ordering.
Installation notes
Replace the front rotors as a pair and install new pads on the same axle. Bed the pads in using the standard steps before firm stops. Confirm the front axle matches the rotor’s position before removing the old one, since both rotors on the axle are normally replaced together.
