Overview

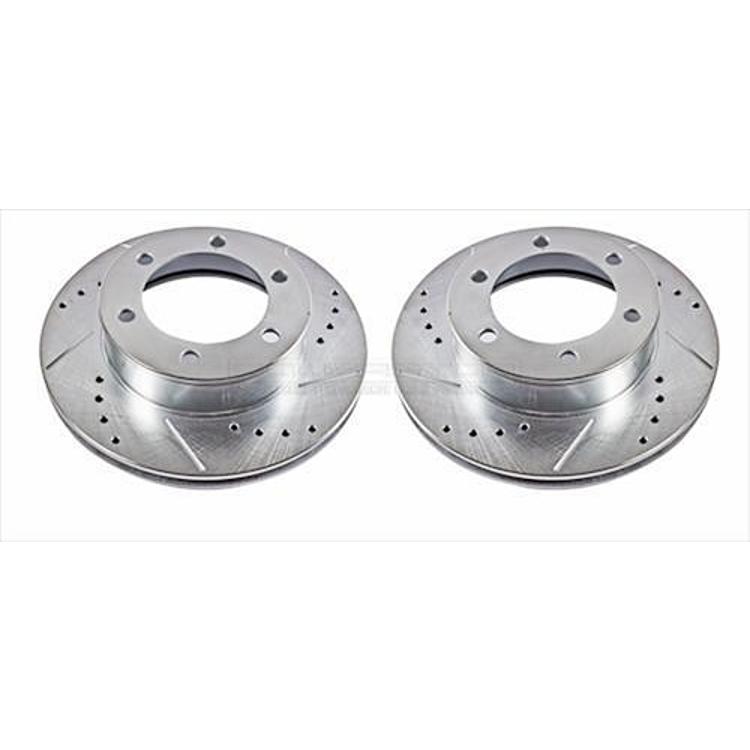

The Power Stop JBR791XPR is a front slotted and cross-drilled brake rotor for the 1996–2002 Toyota 4Runner and the 1995–2004 Toyota Tacoma. It is part of the Evolution line and is made as a direct-fit replacement that combines drilled holes with slots in one rotor face.
Power Stop positions the drilled and slotted design as its most popular performance rotor for street and day track driving. The holes are meant to carry heat away, while the rounded slots sweep water, gas and dust off the contact patch between the pad and the rotor. The casting is G3000 grade and each rotor is mill balanced.
Two measurements on the rotor describe how true it is. Run out is the side-to-side wobble of the rotor face as it spins, and DTV is disc thickness variation. Power Stop gives the run out as within 0.0015 and the DTV tolerance as within 0.005. Direct fit means the rotor replaces the factory part without modification.
Key features
- Cross-drilled holes that Power Stop says keep the rotor up to 180°F cooler
- Rounded slots that sweep water, gas and dust away so the pad keeps a clear contact patch
- Beveled, precision-drilled holes to help hold temperatures down in extreme braking
- Machined with Tru-Cast technology, with rotor run out held within 0.0015 and DTV tolerance within 0.005
- Mill balanced Evolution rotor cast in G3000 grade iron
- Silver zinc plating to shield the rotor and resist rust during normal operation
- Helps reduce fade and looks good behind custom or factory wheels
Setup and wear over time
Slotted and cross-drilled rotors cut more of their face away than a plain disc, so the surface is more exposed to heat and debris. Keeping the pads matched to the rotor helps the drilled holes and slots do their job without premature wear. Pads that are too hard can scar the slots, while very soft pads may not grip the pattern well.
Cross-drilled holes can crack at the edges after very hard use, especially where the rotor is repeatedly heated and cooled. Check the holes and slot edges for hairline cracks during brake service. Look for a pulsing pedal or uneven pad wear, which often point to warped or worn rotors.
On trucks used for towing or mountain driving, performance rotors are often replaced sooner than rotors on a light commuter. Keep the hub mounting face clean and free of rust so the rotor runs true.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR791XPR |
| UPC | 792088560568 |
| Product type | Brake rotor, front |
| Rotor design | Slotted and cross drilled |
| Casting grade | G3000 |
| Coating | Coated (silver zinc plated) |
| Position | Front |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1996–2002 Toyota 4Runner and the 1995–2004 Toyota Tacoma, on the front axle.
Fit covers the 1996–2002 4Runner and 1995–2004 Tacoma years only. Verify your vehicle’s year, model and trim before ordering.
Installation notes
New pads are normally fitted at the same time as the rotors, and both rotors on an axle are replaced together. Bed the new pads in using the standard procedure so the surfaces seat evenly.
