Overview

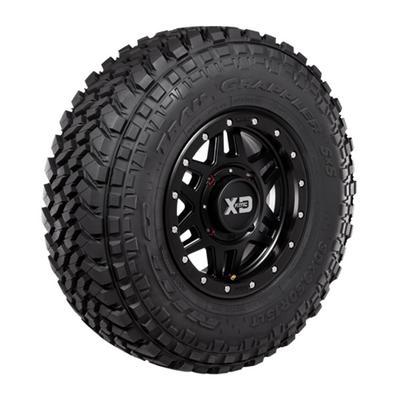

The Nitto Trail Grappler SxS 30×9.50R15LT, part number NIT207-460, is a side-by-side tire built on the tread pattern of the Trail Grappler M/T. It is 30 inches tall and 9.5 inches wide on a 15-inch rim.
The SxS version was developed for UTV racing, specifically the King of the Hammers UTV class. Engineers used 3D computer simulation to adapt the Trail Grappler M/T tread block arrangement for side-by-side use.
The tread block arrangement is adapted from the Trail Grappler M/T using 3D computer simulation, so the pattern keeps the M/T design while being tuned for side-by-side use. Uniform construction from an automated manufacturing process makes the tire easy to balance and gives a smooth ride.
The balanced void ratio is designed to clear mud and dirt from the tread so traction continues off road. Durability was developed during that UTV race program.
Nitto’s description treats the tread as both durable and mud-clearing, so the tire is positioned for racing and hard off-road use alike. Its 30-inch height and 9.5-inch width are the measurements to check first.
Key features
- Tread block arrangement adapted from the Trail Grappler M/T
- Uniform construction that Nitto says balances easily and rides smoothly
- Durability developed for UTV racing
- Balanced void ratio that clears mud and dirt from the tread
- 8-ply construction
Choosing a UTV tire
A UTV tire works in a different load and speed range than a passenger tire. Side-by-sides carry passengers and gear, run at low pressures and spend time in deep mud, so a tire needs a sound casing and a tread that clears debris. Matching the tire to the rim width and checking overall height against the body and suspension are the first steps.
Taller and wider tires change effective gearing and speedometer reading, which can affect acceleration and drivetrain load. An aggressive tread is often louder and wears faster on pavement, so consider how much of your use is trail riding and how much is street driving.
- Confirm rim width before buying
- Check clearance at full steering lock and suspension travel
- Set pressure for the load you carry
- Rotate tires to even out wear
- Inspect sidewalls after rock and stump contact
Specifications
| Brand | Nitto |
|---|---|
| Part number | NIT207-460 |
| Style | Trail Grappler SxS |
| Tire size | 30×9.50R15LT |
| Tire height | 30 inches |
| Tire width | 9.5 inches |
| Rim diameter | 15 inches |
| Ply rating | 8 ply |
| Tire type | UTV |
| Sidewall | Black letters |
| Fitment | Universal fit, by rim size |
Vehicle fitment
This tire is not tied to one vehicle. Choose it by the 15-inch rim diameter and 9.5-inch width, and check clearance for the 30-inch height.
Installation notes
The LT in the size denotes light-truck construction, which is standard tire terminology. Check the 15-inch rim diameter and 9.5-inch width against your wheels, and confirm clearance for the 30-inch height before mounting.
What’s included
One tire. Wheels and mounting hardware are not included.
