Overview

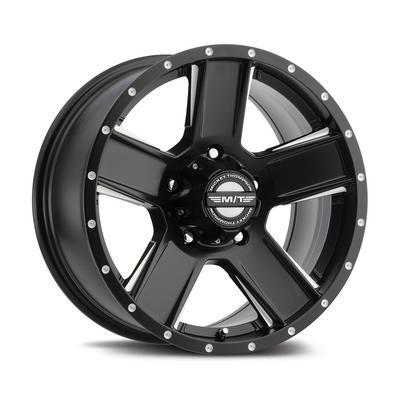

The Mickey Thompson SD-5 18×9 wheel in satin black, part number M/T90000030936, is an 18-inch by 9-inch aluminum wheel with a 5 on 150 bolt pattern, an 18 offset and a 5.8 backspacing. The brand positions it for trucks and Jeeps.
The SD-5 has a classic 5 spoke design, a satin black finish and diamond cut machining with brilliant highlights. It carries a high load rating and comes in sizes from 15×8 through 20×9.
Key features
- Classic 5 spoke design
- Satin black finish with diamond cut machining
- High load rating for strength and durability
- Non-corrosive black plastic screw-on center cap
- Lifetime limited warranty against structural defects and 1-year finish warranty
Setting up a five-lug wheel
Five-lug wheels on trucks and Jeeps are common, and the 5 on 150 pattern gives a wide, stable mounting base for heavier tires. Before fitting, check the hub’s pilot diameter and seating surface so the wheel centers correctly and the lug nuts seat flat. Use the lug nut style that matches the wheel’s seat type.
The 18 offset and 5.8 backspacing set how far the wheel sits, so check both fender and brake clearance with the wheel mounted. Torque lug nuts in a star pattern and recheck them after the first few drives. Inspect the spokes and lip after rough trail use for cracks or bends.
- Confirm hub pilot and seating surface
- Match lug nut seat type to the wheel
- Check caliper clearance before the first drive
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000030936 |
| Style | SD-5 |
| Finish | Satin black, diamond cut |
| Construction | Aluminum |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 150 |
| Offset | 18 |
| Backspacing | 5.8 |
| Center cap | Non-corrosive black plastic, screw-on |
| Load rating | High |
| Available sizes | 15×8 through 20×9 |
| Warranty | Lifetime limited against structural defects; 1-year finish |
Vehicle fitment
No vehicle is named, and the wheel carries universal fitment. It suits trucks and Jeeps in general, so check the 5 on 150 pattern and 18 offset against your hub before mounting.
Universal fitment means no particular year, make, model or trim is confirmed for this wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 18 offset and 5.8 backspacing set how far the wheel sits in the wheel well, so measure brake and suspension clearance before mounting.
What’s included
The wheel includes a non-corrosive black plastic screw-on center cap. Lug nuts and valve stems may need separate sourcing, so check the package contents against your installation before starting.
Not included: The wheel is supplied without a tire.
