Overview

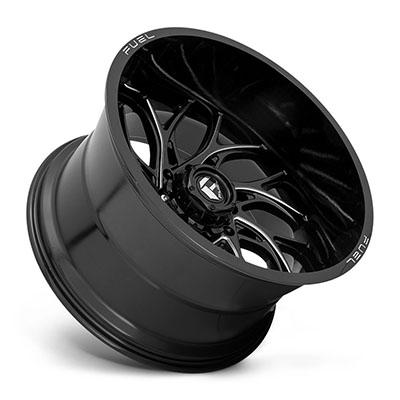

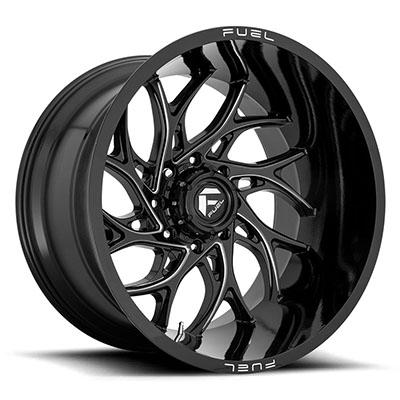

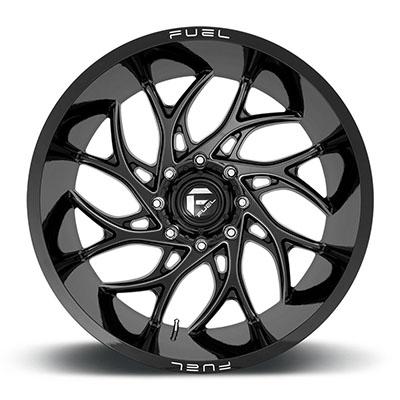

The FUEL Off-Road D741 Runner 20×10 is a 20-inch aluminum wheel with a 6 on 5.5 bolt pattern, an offset of -18 and a gloss black milled finish, part number MHTD74120008447. It is a directional-style wheel from the D741 Runner series and is sold as a wheel only.
Shoppers usually match a wheel on diameter, width, bolt pattern and offset first. This model measures 20 inches across and 10 inches wide, and its negative offset of -18 places the mounting face further outward than a zero-offset wheel would.
Key features
- 20-inch diameter and 10-inch width
- Aluminum construction
- Gloss black milled finish
- Directional style
- 6 on 5.5 bolt pattern
- Center bore of 106 and offset of -18
Choosing the right offset
Offset decides where the mounting face sits compared with the wheel centerline, and that position controls how the wheel fills the wheel well. A negative offset pushes the face outward, which can bring the tire nearer to fender edges, shock towers and steering components. Before buying, measure the room behind the mounting face and compare it with the backspacing so you know how much clearance is left.
Width and tire choice work together with offset. A wider wheel changes the tire’s stance and can reduce the space between tire and suspension. Anyone changing to larger tires should also think about tread width, sidewall height and whether the new tire rubs at full steering lock. Re-check clearance any time the tire, lift or wheel changes.
- Fender liner and flare clearance
- Brake caliper clearance behind the spokes
- Steering lock with the planned tire
- Suspension travel at full compression
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74120008447 |
| Series | D741 Runner |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -18 |
| Backspacing | 4.79 |
| Construction | Aluminum |
| Finish | Gloss Black Milled |
| Style | Directional |
Vehicle fitment
No make, model or year is named for this wheel, which is labeled Universal Fit. Fit depends on the bolt pattern, center bore and offset matching your hub.
A 20×10 with -18 offset will sit differently from a 20×9 with offset 1, so compare each number with your current wheels. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your hub’s bolt pattern and center bore before mounting. Lug nuts and hub-centric rings are not part of this wheel, so check whether your hub needs them.
What’s included
This item is the wheel alone.
Not included: Tires, lug nuts, center caps and hub-centric rings are not included.
