Mickey Thompson Sidebiter Lock, 20x9 Wheel with 8x6.5 Bolt Pattern (3329482) – 90000031074

Mickey Thompson

Shop Mickey Thompson Wheels 20x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Mickey Thompson Sidebiter Lock 20×9 aluminum wheel, part number M/T90000031074
  • 20 inch diameter, 9 inch width, 8 on 6.5 bolt pattern
  • Offset 0 and backspacing 5
  • Satin black finish with machined accents
  • Not vehicle-specific: check hub and clearance before fitting

Description

Overview

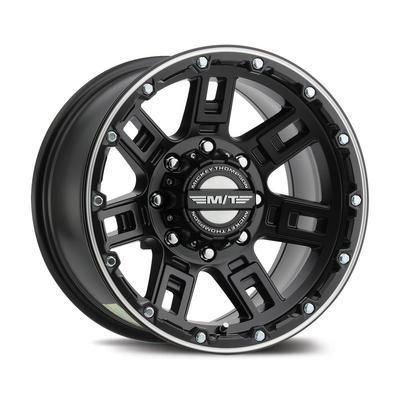

The Mickey Thompson Sidebiter Lock is a 20×9 aluminum wheel, part number M/T90000031074, with an 8 on 6.5 bolt pattern and a satin black finish. It is styled after the SideBiter tire design, which puts the tread on the sidewall, and the wheel carries that look onto the wheel face.

The wheel is built as a heavy duty option for Jeeps, trucks and other 4x4s. Check the 20 inch diameter, 9 inch width, 8 on 6.5 bolt pattern, offset of 0 and backspacing of 5 against your hub and clearance before mounting.

Key features

  • Styled after the SideBiter tread-on-the-sidewall tire design
  • Satin finish that the brand describes as easy to clean
  • Machined accents on the wheel
  • Aluminum construction for a heavy duty build, per the brand
  • 20 inch diameter and 9 inch width
  • 8 on 6.5 bolt pattern with offset 0 and backspacing 5

Before mounting a new wheel

Wheel offset and backspacing decide where the wheel sits relative to the hub, the brake parts and the fender. Before mounting, measure the hub bore and bolt pattern, then compare them with the wheel’s marked specifications. Make sure the lug nuts seat fully against the wheel face and that the thread length suits the wheel thickness.

Aluminum wheels handle impact and heat differently than steel, and a satin finish shows scuffs from tire changes and rocks. Clean the face with a soft brush and mild cleaner rather than harsh abrasives. After the first few trail runs, check the lug nuts for tightness and inspect the lip and spokes for cracks.

  • Retorque lug nuts after the first drive
  • Check tire bead seating and valve stem condition
  • Inspect the inner barrel for rub on suspension parts

Specifications

Brand Mickey Thompson
Part number M/T90000031074
Style Sidebiter Lock
Wheel diameter 20 inches
Wheel width 9 inches
Bolt pattern 8 on 6.5
Offset 0
Backspacing 5
Finish Satin black
Construction Aluminum

Vehicle fitment

This wheel is sold as a universal fit design rather than one built for a single model. Check the 8 on 6.5 bolt pattern, the 20 inch by 9 inch size, offset and backspacing against your vehicle’s hub and brake and suspension clearance before fitting it. Check your vehicle’s year, model and trim before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Offset and backspacing set how far the wheel sits in the wheel well, so check tire and brake clearance at full steering lock after mounting.

What’s included

Confirm you have lug nuts and a center cap that suit the 8 on 6.5 bolt pattern before mounting the wheel.

SKU: M/T90000031074 Categories: ,

Questions & Answers

Is the Sidebiter Lock wheel made for one specific vehicle?

No single vehicle is named for this wheel, and it is not built for one model. Check the 8 on 6.5 bolt pattern, 20x9 size, offset 0 and backspacing 5 against your hub before fitting it.

What size and finish is the wheel?

It is a 20 inch diameter, 9 inch wide aluminum wheel in satin black with machined accents. Its offset is 0 and its backspacing is 5. Confirm the load rating and weight suit your tires and vehicle before use.

What is the part number for this Mickey Thompson wheel?

The part number is M/T90000031074 from Mickey Thompson. No UPC is given, so use the part number and bolt pattern to identify the exact wheel.

Are lug nuts or a center cap included?

Confirm lug nuts and a center cap that suit the 8 on 6.5 bolt pattern before mounting, since they are not covered for this wheel.

How do I tell if a wheel needs replacing?

Look for cracks or bends along the lip, spokes and bead seat, and for air loss around the bead or a slow leak that keeps returning. Any visible crack or bend means the wheel should be inspected by a qualified shop before further off-road use.
