Overview

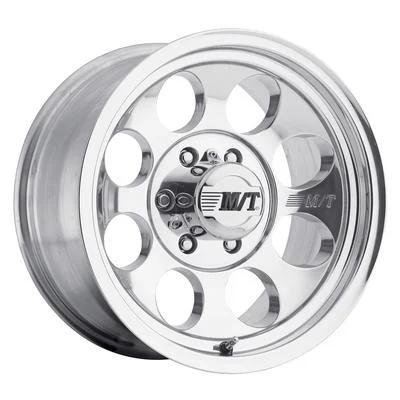

The Mickey Thompson Classic III 16×10 is a polished aluminum wheel, part number M/T90000001778, with an 8 on 170 bolt pattern and a 125 center bore. It is 16 inches in diameter, 10 inches wide, and has an offset of -25.
This wheel uses the Classic III face with polished hand holes. Mickey Thompson’s Universal Fit label is only a starting point, since the bolt pattern, center bore and offset must match the hub it mounts to.
Key features
- Classic III face style with a polished finish
- Polished hand holes for a sharper look
- High load rating.
- Limited lifetime warranty noted by Mickey Thompson
- Backspacing of 4.5 and offset of -25 for spacing reference
Hub-centric fit and lug hardware
An 8 on 170 pattern with a 125 center bore relies on a close match between the hub and the wheel. When the center bore is larger than the hub hub, the wheel centers on the lug studs alone, and that can cause vibration at speed. Hub-centric rings fill the gap and carry the load onto the hub, which is a common fix when the bore does not match exactly.
Lug hardware matters as much as the wheel itself. The seat style of the nut has to match the wheel’s lug holes, or the nut can loosen under load. Check the fasteners before the first drive and again after the first few trips on a new wheel, since new mounting surfaces settle.
- Use hub-centric rings when the center bore is larger than the hub
- Match the lug nut seat style to the wheel
- Re-check lug torque after the first few drives
- Inspect studs for damage before mounting
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000001778 |
| Model | Classic III |
| Wheel diameter | 16 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | -25 |
| Backspacing | 4.5 |
| Construction | Aluminum |
| Finish | Polished |
| Style | Classic III |
Vehicle fitment
No year, make or model is tied to this wheel, and the Universal Fit marking covers a range of trucks. Confirm the 8 on 170 pattern and 125 center bore against your hub, then confirm fit for your vehicle’s year, model and trim before ordering.
Mickey Thompson’s cap exclusions cover some 2002 and earlier Dodge/Ram 3/4 and 1-Ton pickups and 1997 and earlier Toyota Land Cruiser models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit the 8 on 170 pattern and 125 center bore on the hub before anything else. No mounting hardware is listed with this wheel.
What’s included
The title describes one 16×10 wheel with a polished finish.
Not included: Lug nuts and center caps are not part of this wheel.
