Overview

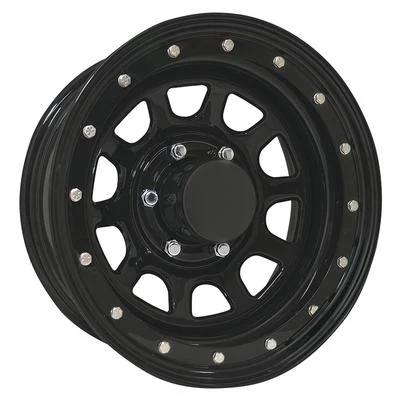

The Pro Comp Series 252 Street Lock in 15×10 inches is a flat black windowed steel wheel, part number PCW252-5183F, with a 6 on 5.5 bolt pattern. It belongs to Pro Comp Steel Wheels’ Series 252 line, which the brand sizes and backspaces for off-road vehicles that need a steel rim with a powder coat.
The -44 offset places the mounting face behind the centerline, which moves the wheel outward. The 3.75 backspacing measures the room behind the mounting face. The 108 center bore sets the centering diameter on the hub.
Key features

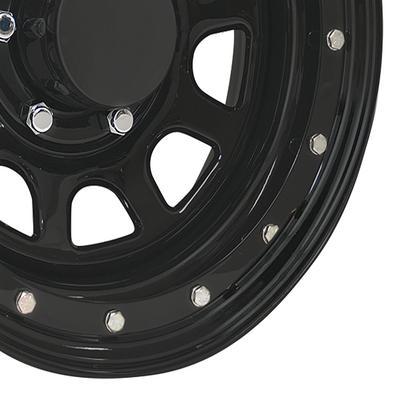

- Windowed steel design with a flat black powder coat
- 15 inch diameter and 10 inch width
- 6 on 5.5 bolt pattern

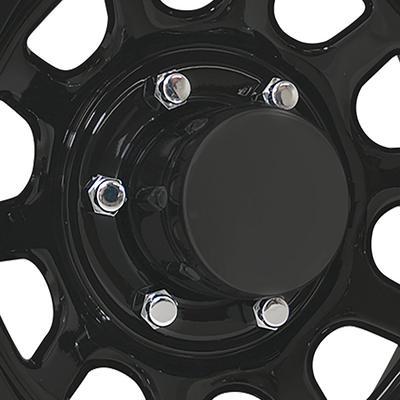

- 108 center bore
- -44 offset and 3.75 backspacing
- Series 252 Street Lock styling
Flat black finish care
A flat black powder coat hides small scratches well at a distance, but it can show scuffs and polish marks up close. Wash with mild soap and water, and avoid harsh solvents or abrasive pads that can dull the surface. Dry the wheel after washing so road salt and brake dust do not sit in the window cutouts.
Brake dust is the main source of buildup on dark wheels, and it is easier to remove when the wheel is washed regularly. Check the bead area and inner barrel for rust after wet trips, especially where the coating has worn. Touch-up paint suited to powder coat is a practical way to address small chips before corrosion spreads. Rinse the inside of the rim as well.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW252-5183F |
| Series | 252 Series Street Lock |
| Construction | Steel |
| Style | Windowed |
| Finish | Flat black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -44 |
| Backspacing | 3.75 |
Vehicle fitment
No vehicle with years or a chassis code is named for this wheel. The 6 on 5.5 pattern and 108 center bore define the hub match, and the -44 offset decides where the tire sits in the wheel well. Measure those figures against your vehicle before ordering, since the universal label is not a clearance check.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A wide rim with large negative offset may rub the fender or the steering components at full lock. Test the tire position before a trail trip, and recheck the lug nuts after the first few miles.
What’s included
The 15×10 windowed wheel (PCW252-5183F) comes alone, without a center cap.
Not included: Center cap and lug nuts for part PCW252-5183F, which are sold separately.
