Overview

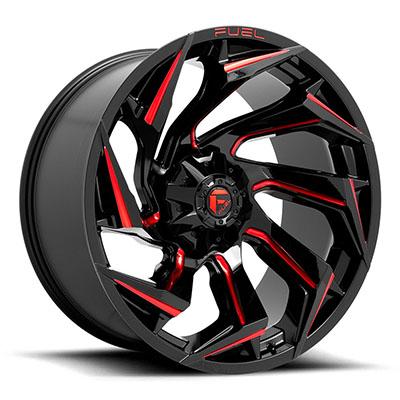

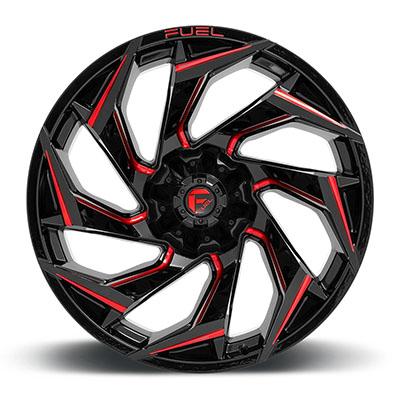

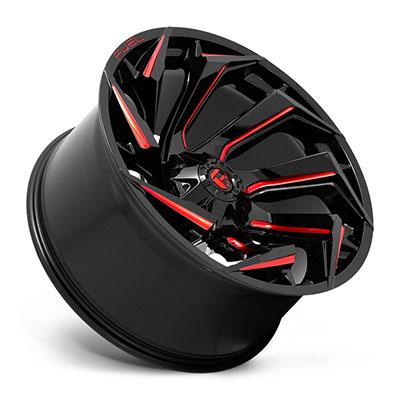

The FUEL Off-Road Reaction D755 is a 17 x 9 inch directional aluminum wheel, part number MHTD75517907050. It comes in 5 on 5.5 and 5 on 150 bolt patterns, with a gloss black milled finish and red tint.
Offset 1, center bore 110 and backspacing 5.04 are the figures to measure against your vehicle’s hub. The finish is a styling detail, while the bolt pattern and center bore determine whether the wheel can be mounted.
Key features
- Aluminum construction in a 17-inch diameter and 9-inch width
- Directional style with gloss black milled finish and red tint
- Bolt patterns 5 on 5.5 and 5 on 150
- Center bore 110 listed
- Offset 1 and backspacing 5.04 listed
Before you mount directional wheels
A directional wheel has to be mounted with its rotation arrow pointing the right way, and the tire should be fitted to match. Check the arrow on the inside of the rim before the tire goes on, and make sure the balance weights sit where the wheel can clear the caliper. Fresh paint and milled surfaces can scratch during mounting, so use a soft tire bead lubricant and avoid metal tools on the face.
Plan to recheck lug nut torque after the first few drives, since new wheels can settle against the hub. Inspect the wheel face and spokes after rough trail runs for cracks, bent edges or loose balance weights. A red tint finish may show chips more clearly, so touch-up supplies are worth keeping on hand.
- Rotation arrow aligned with the tire
- Balance weights placed away from the caliper
- Recheck lug torque after the first drives
- Inspect spokes after hard trail use
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD75517907050 |
| Model | Reaction D755 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5.5/5 on 150 |
| Offset | 1 |
| Center bore | 110 |
| Backspacing | 5.04 |
| Style | Directional |
| Finish | Gloss Black Milled With Red Tint |
| Construction | Aluminum |
Vehicle fitment
No vehicles are named for this wheel. The Universal Fit label should be read alongside the bolt pattern, offset and center bore measurements for your own vehicle.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the wheel lists two bolt patterns, confirm which one applies to your vehicle before mounting. The directional style also means the mounting orientation should be checked.
What’s included
Only the wheel is included.
Not included: Tires and hardware are not included.
