Overview

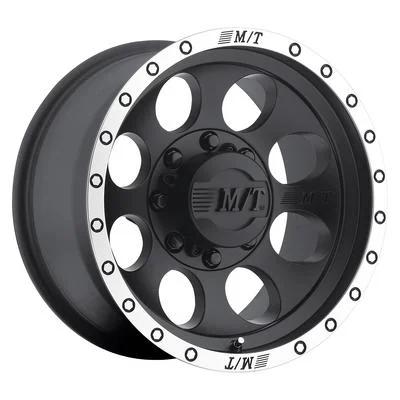

The Mickey Thompson Classic Baja Lock 16×8 is a matte black aluminum wheel with a simulated bead lock design. Part number M/T90000020077 has a 6 on 5.5 bolt pattern, a 106 center bore and an offset of 0. It is built for 4×4 owners who want off-road race or rock crawler styling and is a universal fit wheel.
This is the 8-inch-wide version of the Baja Lock, built on the Classic III styling. Mickey Thompson offers a lifetime limited guarantee for structural defects and a one year finish warranty, and center caps are not available on several older applications.
Key features
- Simulated bead lock design derived from the Classic III styling.
- Holes style in a matte black finish.
- Aluminum construction in a 16-inch diameter and 8-inch width.
- 6 on 5.5 bolt pattern with a 106 center bore.
- Zero offset and 4.5 backspacing.
- Lifetime limited guarantee for structural defects.
Wheel well fit and width
Zero offset places the mounting face at the hub centerline, which affects how the wheel sits in the fender compared with negative-offset designs. Backspacing of 4.5 works with that offset to set the inner clearance, so check the brake caliper and suspension arm before a trail trip.
The 8 inch width limits which tires fit well. Wider tires can reach the fender at full steering lock or during suspension compression, so test fit the tire on the wheel before mounting. Tire sidewall ratings and load range matter just as much as width when choosing a set.
Simulated bead lock styling changes the look of the face but does not change how tires seat. Keep normal tire pressure checks on a schedule and inspect the lip for dents after rocky trails, since a bent lip can affect tire seal on any wheel.
- Test fit the tire on the wheel before mounting
- Check inner clearance at the brakes
- Confirm the bolt pattern against your hub
- Inspect the lip after rocky trail use
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000020077 |
| Series | Classic Baja Lock |
| Style | Holes |
| Finish | Black (matte black) |
| Construction | Aluminum |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 0 |
| Backspacing | 4.5 |
| Warranty | Lifetime limited guarantee for structural defects; one year finish warranty |
| Fitment | Universal Fit |
Vehicle fitment
This wheel is a universal fit design, so it is not tied to one vehicle. An offset of 0 and backspacing of 4.5 place the wheel differently in the wheel well than a negative-offset wheel would, so measure your hub and brake clearance first.
The 6 on 5.5 bolt pattern and 106 center bore must match your hub exactly. Confirm those figures against your vehicle’s specifications before choosing this size, and keep the 8-inch width in mind for tire selection.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Several older applications cannot take center caps: 1997 and earlier Ford 3/4 and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4 and 1-ton pickups, 1997 and earlier Toyota Land Cruiser models and 1986 and earlier Jeep CJ models. Verify your application before planning caps.
What’s included
Only one wheel is included. Tires, lug nuts and center caps are not included with the wheel.
