Overview

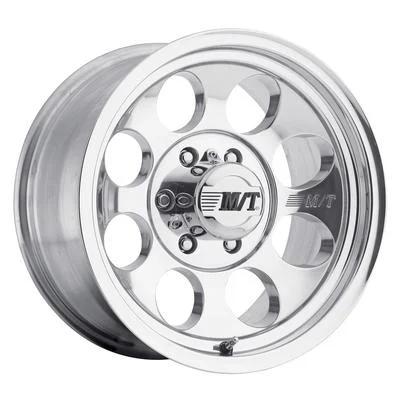

The Mickey Thompson Classic III 16×8 wheel with an 8 on 170 bolt pattern is a polished aluminum wheel with a hole-style face, part number M/T90000001775. It is 16 inches in diameter and 8 inches wide, with a -12 offset, 4 backspacing and a 125 center bore.
The Classic III is Mickey Thompson’s popular truck wheel line, offered with a high load rating and a limited lifetime warranty from the maker. Universal Fit is the only fitment statement, so the 8 on 170 pattern and 125 center bore, rather than a model year, decide whether it suits an axle.
Key features
- Hole-style face finished in polish
- Polished hand holes set into the aluminum face
- 8 on 170 bolt pattern with 125 center bore
- Negative 12 offset and 4 backspacing
- M/T quality stamp and high load rating.
- Limited lifetime warranty stated by Mickey Thompson
Negative offset and suspension
Negative offset moves the mounting face outward, so more of the wheel sits beyond the hub. That changes how the tire tracks, how the steering responds and how the wheel clears the fender. Scrub radius can also increase, which makes the steering feel more active over ridges and on uneven pavement.
Backspacing is the companion measurement. Less backspacing leaves less room for the brake caliper and suspension parts behind the wheel. Check both figures with the tire mounted, and watch for contact on the outer fender edge when the suspension compresses or the steering turns.
- Check tire contact on the outer fender edge
- Watch for steering changes after mounting
- Confirm brake caliper clearance behind the wheel
- Recheck after any suspension change
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000001775 |
| Style | Hole |
| Finish | Polished |
| Construction | Aluminum |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | -12 |
| Backspacing | 4 |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is marked Universal Fit with no vehicle-by-vehicle breakdown. Verify the 8 on 170 pattern and 125 center bore first, then compare the -12 offset and 4 backspacing with your brake and suspension clearance.
Center caps are unavailable on certain older trucks and Jeeps, such as Dodge/Ram 3/4 and 1-Ton pickups from 2002 and earlier and Jeep CJ models from 1986 and earlier. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Negative offset pushes the wheel outboard, so confirm tire and fender clearance and the 4 backspacing against your brake setup before the wheel is installed.
What’s included
The package is the wheel alone, with no center caps or lug hardware.
Not included: Fasteners are not part of this wheel.
