Overview

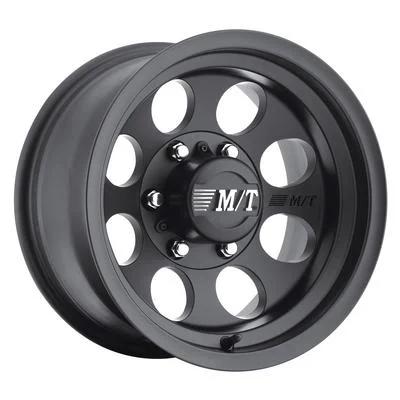

The Mickey Thompson Classic III 17×9 wheel in black, part number M/T90000001797, is an aluminum truck wheel with a 17-inch diameter, a 9-inch width and an 8 on 6.5 bolt pattern. It has a center bore of 125, an offset of 0 and a backspacing of 5.
Mickey Thompson presents the Classic III as a popular truck wheel with a satin black finish under a protective clear coat, polished hand holes and a high load rating. The brand also cites its quality stamp and a limited lifetime warranty.
Key features
- Satin black finish with a protective clear coat
- Polished hand holes for a distinctive look
- High load rating
- Aluminum construction with 17 by 9 inch dimensions
- 8 on 6.5 bolt pattern and 125 center bore
Choosing a tire for this rim
A 17 by 9 inch rim suits a range of truck tires, but the exact choice depends on the tire’s approved rim width, load index and overall diameter. Tire diameter changes speedometer accuracy and can affect how close the tire comes to fenders and suspension parts. Ask a tire shop to confirm the rim width range before mounting.
Zero offset places the mounting face near the centerline of the wheel, which tends to keep the tire closer to the hub. Brake caliper clearance is worth checking with the wheel fitted, so look at it before the first drive. After the first few drives, recheck wheel bolts and look for rubbing on the inner barrel.
- Match tire rim width to the approved range
- Check brake clearance with the wheel mounted
- Recheck wheel bolts after initial drives
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000001797 |
| Style | Classic III |
| Finish | Black, satin black with protective clear coat |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 125 |
| Offset | 0 |
| Backspacing | 5 |
| Load rating | High |
| Warranty | Limited lifetime |
Vehicle fitment
This wheel is marked Universal Fit, so no particular year, make, model or trim is named. Confirm the 8 on 6.5 bolt pattern and 125 center bore against your hub, then compare the 0 offset and 5 backspacing with your clearance.
Center caps are unavailable on some older trucks, including Ford 3/4 and 1-Ton pickups through 1997, Dodge/Ram 3/4 and 1-Ton pickups through 2002, Toyota Land Cruisers through 1997 and Jeep CJ models through 1986. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The wheel is sold on its own, and lug hardware and center caps may need to be sourced separately. Check the package contents against your installation before starting.
Not included: A tire would be a separate purchase, so plan for it before mounting.
