Overview

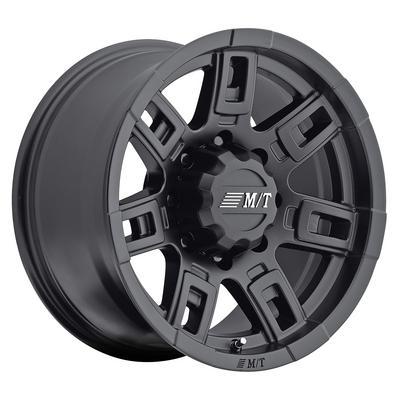

The Mickey Thompson Sidebiter II 17×9 wheel in satin black, part number M/T90000019389, is an aluminum truck wheel measuring 17 inches in diameter and 9 inches wide. Its bolt pattern is 5 on 5, with a center bore of 78, an offset of -12 and a backspacing of 4.5.
The Sidebiter II is styled after Mickey Thompson’s tread-on-the-sidewall SideBiter tire design, a well known innovation in off-road history. It is a heavy duty wheel with an easy to clean high gloss finish and a bold look for Jeeps.
Key features
- Styled after the tread-on-the-sidewall SideBiter tire design
- Heavy duty build
- Easy to clean high gloss finish
- Aluminum construction, 17 by 9 inches
- 5 on 5 bolt pattern with a 78 center bore
Checking a 5 on 5 fit
A 5 on 5 bolt pattern is a less common layout, so verify the hub’s bolt circle and pilot before buying. Measure the bolt circle across opposite studs and compare it with the wheel’s pattern. Any mismatch needs to be resolved before mounting, because a wheel that does not seat squarely can loosen over time.
The 78 center bore should match or slightly exceed your hub’s diameter, so the wheel centers without relying only on lug nuts. A hub-centric ring can fill the gap when the bore is larger. Negative offset and 4.5 backspacing move the tire outward, so check fender and steering clearance after mounting.
- Confirm bolt circle with calipers or a template
- Match center bore to hub-centric size
- Check steering and fender clearance at full lock
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000019389 |
| Style | Sidebiter II |
| Finish | Satin black per title; high gloss per description |
| Construction | Aluminum |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 78 |
| Offset | -12 |
| Backspacing | 4.5 |
Vehicle fitment
No particular year, make, model or trim is named, since the wheel carries universal fitment. Because the bolt pattern is 5 on 5 and the center bore is 78, compare those figures with your hub before mounting.
Older Jeep CJ models from 1986 and earlier, Toyota Land Cruisers from 1997 and earlier, and some Ford and Dodge/Ram 3/4 and 1-Ton pickups cannot take a center cap. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 5 on 5 pattern and 78 center bore are the fit points to check first. The -12 offset and 4.5 backspacing set how far the wheel sits, so measure brake and suspension clearance before mounting.
What’s included
Confirm whether lug nuts or a center cap are needed for your installation before ordering.
Not included: The package covers the wheel only, so a tire must be purchased separately.
