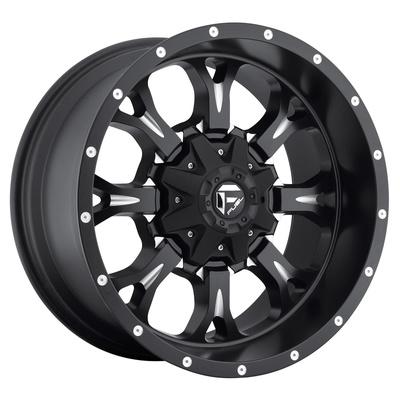

FUEL Off-Road D517 Krank, 17x9 Wheel with 5 on 5 and 5 on 5.5 Bolt Pattern – Matte Black Milled – D51717905750

FUEL Off-Road

$345.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 12:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D517 Krank 17×9 wheel, part MHTD51717905750
  • Bolt patterns 5 on 5 and 5 on 5.5, center bore 87
  • Offset 1 and backspacing 5, matte black milled aluminum
  • Brand classifies it as universal fit; no vehicle is named

Description

Overview

Part number MHTD51717905750 is a FUEL Off-Road D517 Krank, a 17×9 aluminum wheel with a matte black milled face. It comes in two bolt patterns, 5 on 5 and 5 on 5.5, with a center bore of 87.

The offset is 1 and the backspacing is 5. The brand classifies the wheel as universal fit, so the bolt pattern and center bore are the points to verify against your hub before mounting.

Key features

  • Center bore of 87 for hub matching.
  • Offset of 1 and backspacing of 5.
  • Two bolt patterns: 5 on 5 and 5 on 5.5.
  • 17-inch diameter and 9-inch width.
  • Matte black milled finish on aluminum.
  • Krank style face.

Matching the hub pattern

A 5 on 5 pattern and a 5 on 5.5 pattern look close, but the studs do not line up across both, so the hub has to be measured first. Center bore matters just as much: the 87 bore must seat on the hub’s pilot, or be spaced with hub rings if the hub bore is larger. Use a caliper to measure the bore and a bolt pattern gauge for the studs, then record both figures before buying.

Hardware and related parts complete the setup. Lug nuts should match the seat style, and studs should be inspected for thread wear before the wheel goes on. Hub rings are a common add-on when the bore does not match, and they need a snug fit. Wheel bearings, brake rotors and the hub face are worth inspecting whenever the wheel comes off, since rust on the mounting surface can cause vibration.

Specifications

Brand FUEL Off-Road
Part number MHTD51717905750
Wheel diameter 17 inches
Wheel width 9 inches
Style Krank
Finish Matte Black Milled
Construction Aluminum
Bolt pattern 5 on 5 / 5 on 5.5
Center bore 87
Offset 1
Backspacing 5
Fitment Universal Fit

Vehicle fitment

This wheel is not tied to any particular vehicle. A 5 on 5 pattern and a 5 on 5.5 pattern are different, so confirm which one your hub uses first.

Universal fit is a brand classification, not a vehicle match. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the center bore of 87 against your hub. Hub rings and lug hardware should be checked and chosen separately before mounting.

What’s included

This product is one wheel.

Not included: tire, lug hardware, hub rings (not listed).

SKU: MHTD51717905750 Categories: ,

Questions & Answers

Is the D517 Krank 17x9 with a 5 on 5 bolt pattern made for one vehicle?

No. This wheel is not tied to any particular vehicle. Match the bolt pattern, center bore 87 and offset 1 to your own vehicle before choosing it.

Does this wheel include hub rings?

No. Hub rings are not part of this wheel, so measure your hub's bore against the center bore of 87 and buy rings separately if the fit requires them.

What is part number MHTD51717905750?

It is the FUEL Off-Road part number for the D517 Krank 17x9 in matte black milled finish, with 5 on 5 and 5 on 5.5 bolt patterns, offset 1 and backspacing 5.

What is a hub-centric ring for?

A hub-centric ring fills the gap between a larger hub bore and a smaller wheel center bore, so the wheel centers on the hub rather than on the lug studs. Choose the ring size to match the hub bore and the wheel bore.
