Overview

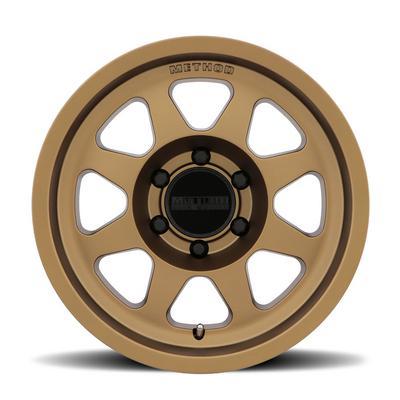

The Method Race Wheels 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178550900, is a 17-inch diameter, 8.5-inch wide aluminum wheel with a 5 on 5 bolt pattern, 72 center bore, 0 offset and 4.75 backspacing.

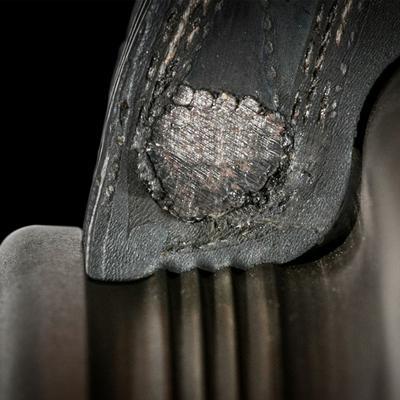

The wheel is one-piece cast 356 aluminum with T6 heat treatment. The MR701 Bead Grip design holds the tire bead against the bead seat at reduced air pressure over trail terrain, and a reinforced inner lip is built in. It is a universal fit wheel, so it is not built for a single vehicle. Check the bolt pattern and center bore first.
Key features
- One-piece cast 356 aluminum with T6 heat treatment

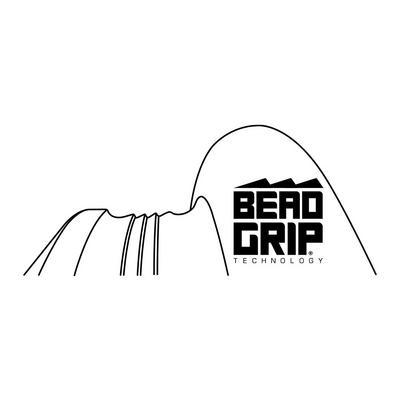

- Bead Grip technology for tire bead grip at lower air pressures
- Reinforced inner lip based on Method’s race wheel design
- Safety hump on the inner and outer bead seat to help stabilize the tire
- Finite Element Analysis and field tests were part of the engineering.
- No weight figure is available, so compare weights directly if weight matters to your build.
- Windowed style in Bronze finish
Bolt pattern basics
Bolt pattern and center bore determine whether a wheel can be mounted at all. The lug count and spacing must match the hub exactly, and the center bore should either match the hub or be correctly centered with a hub-centric ring. A wheel that fits the lugs but not the hub can vibrate or put load on the studs rather than the hub.
Measure the hub before ordering rather than relying on the lug count alone. Note the lug count, the spacing between lugs, and the hub bore diameter. Keep those measurements with the wheel specifications so the fit can be verified at the shop, not only at home.
- Measure the lug count and spacing on the hub
- Compare the hub bore diameter with the center bore
- Use hub-centric rings where the hub is larger
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178550900 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
| Style | Windowed |
| Finish | Bronze |
Vehicle fitment
It is a universal fit wheel, so no make, model or year is named for it. Fit depends on the 5 on 5 bolt pattern, 72 center bore, 0 offset and 4.75 backspacing matching your hub, along with brake and suspension clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset and backspacing determine how far the wheel sits within the wheel well, so confirm clearance to calipers and suspension parts before mounting it.
What’s included
Whether lug nuts, center caps or valve stems come with the wheel is unknown. Check the package contents against your installation before starting.
Not included: A tire is not part of this wheel and must be purchased separately.
