Method Race Wheels 105 Beadlock, 17x8.5 with 6 on 5.5 Bolt Pattern – Black – MR10578560500B

Method Race Wheels

$406.25In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

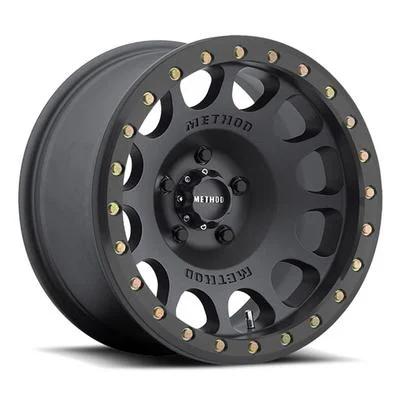

  • 17×8.5 aluminum beadlock wheel in Black, MR105 Beadlock series
  • 6 on 5.5 bolt pattern, 108 center bore, 0 offset, 4.75 backspacing
  • Part number MRWMR10578560500B
  • No vehicle years or models are named, so check bolt pattern and offset first

Description

Overview

The Method Race Wheels MRWMR10578560500B is a 17×8.5 Black aluminum beadlock wheel from the MR105 series, with a 6 on 5.5 bolt pattern. It suits off-road tires that call for a beadlock style, and the listed specifications cover offset, center bore and backspacing.

The MR105 Beadlock is designed for amateur racers and serious enthusiasts. The wheel has a 0 offset, a 108 center bore and a 4.75 backspacing, so check those against your hub and brake clearance first.

Key features

  • Beadlock style for off-road tire retention
  • 17-inch diameter with an 8.5-inch width
  • Aluminum construction in a Black finish
  • 6 on 5.5 bolt pattern with a 108 center bore
  • Offset of 0 and backspacing of 4.75
  • MR105 Beadlock series, which the brand developed for amateur racers and serious enthusiasts

Hub fit and clearance

Bolt pattern and center bore decide whether a wheel can be mounted at all, while offset and backspacing decide where it sits. A 0 offset places the mounting face close to the centerline, which changes how the wheel clears brakes, calipers and the inner fender. Measure the hub and the existing wheel before choosing a size, because small differences add up across the axle.

Clearance checks should include steering lock, suspension travel and tire width. A wider tire may need more room at full compression, and a wheel that sits too far in can rub the frame or spring perch. After mounting, check for rubbing at full lock and at full suspension travel, and look for uneven tire wear that can point to an offset problem.

  • Measure hub bore and bolt pattern
  • Check brake caliper clearance
  • Test steering lock with the new wheels
  • Recheck clearance after suspension changes

Specifications

Brand Method Race Wheels
Part number MRWMR10578560500B
Series MR105 Beadlock
Style Beadlock
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Offset 0
Center bore 108
Backspacing 4.75
Bolt pattern 6 on 5.5
Finish Black
Construction Aluminum
Brand fitment label Universal Fit

Vehicle fitment

Universal Fit applies to this wheel, but fit stays unconfirmed without a year, make and model. A 6 on 5.5 pattern with a 108 center bore needs a matching hub, so measure before ordering.

Confirm fit for your vehicle’s year, model and trim before ordering. Nearby model years cannot be ruled in or out without that check.

Installation notes

Bead-lock style wheels need a bead-lock ring and bolts, plus tires rated for beadlock mounting. Mounting differs from a standard install, so plan for those parts before the wheel goes on.

Run beadlock tires only at pressures inside the range the tire is rated for.

What’s included

The wheel is the described item. Lug nuts, valve stems and caps aren’t mentioned.

Not included: tires. Bead-lock hardware is not confirmed as included.

SKU: MRWMR10578560500B Categories: ,

Questions & Answers

What bolt pattern does the MRWMR10578560500B use?

It uses a 6 on 5.5 bolt pattern with a 108 center bore. Match those figures to your hub before ordering, since fit also depends on your vehicle's year, model and trim.

Is this a beadlock wheel?

Yes. The wheel is a beadlock style from the MR105 Beadlock series, in Black aluminum measuring 17 by 8.5 inches. Plan on beadlock-rated tires and a bead-lock ring for mounting.

What are the offset and backspacing?

The listed offset is 0 and the backspacing is 4.75. The 108 center bore is also listed, so compare these with your vehicle's clearance before ordering.

What does a wheel's offset change?

Offset sets the position of the mounting face relative to the wheel's centerline, which moves the tire in or out. Less offset pushes the wheel outward, while more offset tucks it inward. Confirm clearance against your hub and brakes before driving.
