Overview

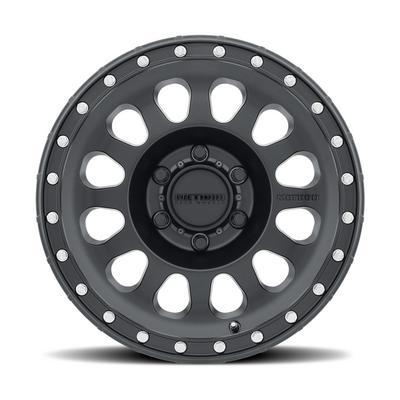

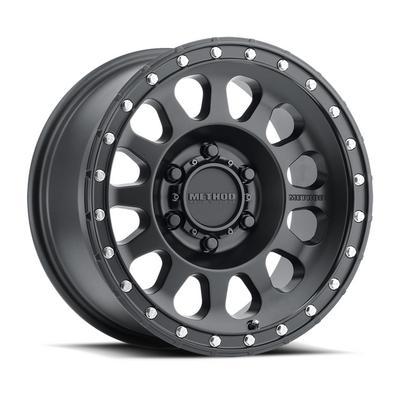

The Method Race Wheels MR315 17×8.5 in Matte Black is a 17-inch aluminum wheel with a 6 on 120 bolt pattern, part number MRWMR31578562500. It has a windowed style and is marked universal fit, so it is not tied to one named vehicle.
The MR315 line is engineered for off-road use and checked with finite element analysis and field tests, with the goal of less weight and more strength. Compare the center bore, offset and backspacing with your own hub and clearances before choosing a size.
Key features
- 17-inch diameter and 8.5-inch width in the MR315 series

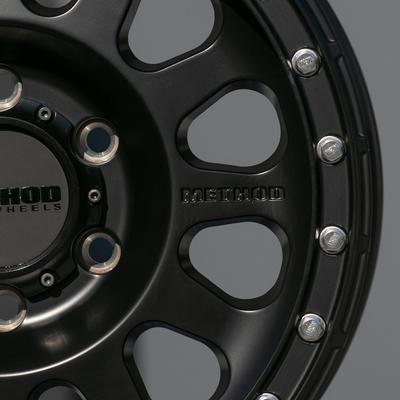

- Windowed style with a matte black finish
- Aluminum construction
- 6 on 120 bolt pattern with a center bore of 67
- Offset 0 and backspacing 4.75
- Engineered for less weight and more strength
Hub-centric rings and centering
A hub-centric ring is a spacer ring that fills the gap between a wheel’s center bore and the hub pilot. Its job is to center the wheel on the hub so the lug nuts are not the only thing holding it in position. Rings are sized to the hub and the bore, and a ring that is too small or too large will not center the wheel correctly. When the bore and the hub match closely, no ring is needed.
Centering affects vibration more than most owners expect, especially at highway speeds. A wheel that sits slightly off center can shake even with correct torque. Clean the hub face and the back of the wheel before mounting, and check that no rust or debris sits between them. Recheck torque after the first drive, because the wheel can settle a little against the hub during early use.
- Confirm the ring size against the hub before ordering
- Clean rust and debris from the hub face
- Recheck torque after the first few drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31578562500 |
| Series | MR315 |
| Diameter | 17 Inches |
| Width | 8.5 Inches |
| Bolt pattern | 6 on 120 |
| Center bore | 67 |
| Offset | 0 |
| Backspacing | 4.75 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No make, model or year is named for this wheel, since it is a universal fit design. Confirm your vehicle’s year, model and trim before ordering.
A 6 on 120 pattern with a 67 center bore is a question about your hub and offset, not about a model name. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 67 center bore with your hub’s pilot diameter before mounting. If the bore is larger than the hub, a hub-centric ring is the usual way to center the wheel.
What’s included
The wheel is the only item covered here. Tires, lug nuts and center caps are not included, so buy those separately if your build needs them.
