Method Race Wheels 702 Series, 17x8.5 with 6 on 135 Bolt Pattern – Matte Black – MR70278516500

Method Race Wheels

$370.26In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 702 Series 17×8.5 spoke wheel in Matte Black, part number MRWMR70278516500
  • Six on 135 bolt pattern, offset 0, center bore 87, backspacing 4.75
  • Aluminum construction in the MR702 Bead Grip series
  • Universal Fit is the only fitment entry, with no vehicle named

Description

Overview

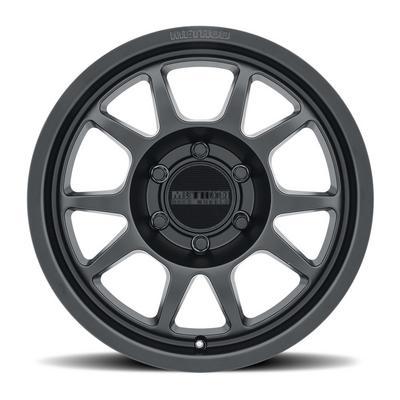

The Method Race Wheels 702 Series 17×8.5 in Matte Black, part number MRWMR70278516500, is a 17-inch aluminum spoke wheel with an 8.5-inch width and a 6 on 135 bolt pattern. It is part of the MR702 Bead Grip series and carries a matte black finish.

The line was developed for off-road racing. Each wheel is engineered for its intended use and was tested with Finite Element Analysis and field trials. Street versions of this design come in Diamond Cut / Clear or Matte Black, and this model is finished in Matte Black.

Key features

  • Aluminum construction that the brand developed to reduce weight and add strength
  • Spoke style with a matte black finish
  • MR702 Bead Grip series
  • Design checked with Finite Element Analysis and field testing, per the brand
  • 17-inch diameter and 8.5-inch width

Checking hub fit before mounting

Hub fit comes first. Bolt pattern, center bore, offset and backspacing work together, and a mismatch in any one can cause vibration, rubbing or a wheel that does not seat square. Clean the hub face and remove rust or debris, then test-fit the wheel without a tire to see how it centers and how close it sits to the caliper and control arms. A hub-centric ring can close a small center bore gap, but it cannot correct a bolt pattern that does not match.

After mounting, tighten lug nuts in a star pattern and recheck torque after the first short drive and again after the first few trail runs. Aluminum wheels are sensitive to uneven clamping. Look for cracks around the spokes and the mounting face after hard impacts, and replace a bent wheel rather than straightening it, since straightening can hide fatigue damage.

  • Match bolt pattern and center bore before mounting
  • Test-fit with the planned tire at full steering lock
  • Recheck lug torque after the first short drive
  • Inspect spokes and mounting face after hard impacts

Specifications

Brand Method Race Wheels
Part number MRWMR70278516500
Series MR702 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 135
Offset 0
Center bore 87
Backspacing 4.75
Style Spoke
Finish Matte Black
Construction Aluminum

Vehicle fitment

It is a Universal Fit wheel, with no make, model or year named. Compare the 6 on 135 bolt pattern, offset 0, center bore 87 and backspacing 4.75 with your hub and clearances before ordering.

The bronze finish in this size uses a different part number. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Verify that the 87 center bore matches your hub before mounting, since a poor fit can cause vibration. Match the lug hardware to the 6 on 135 pattern and tighten to the torque your vehicle requires.

What’s included

The package holds a single wheel. Not included: Tires and mounting hardware; confirm what your installation needs before starting.

SKU: MRWMR70278516500 Categories: ,

Questions & Answers

What finish is part MRWMR70278516500?

Part MRWMR70278516500 is Matte Black. It is the Method Race Wheels 702 Series 17x8.5 with a 6 on 135 bolt pattern, offset 0, center bore 87 and backspacing 4.75, built from aluminum in the MR702 Bead Grip series.

Does this wheel list a specific vehicle?

No. It is a Universal Fit wheel with no make, model or year named. Compare the bolt pattern, offset and center bore against your vehicle's hub before buying.

Which finishes does Method Race Wheels offer on its street wheels?

The street versions come in Diamond Cut / Clear or Matte Black. This part is Matte Black, the finish covered by part MRWMR70278516500.

How often should an aluminum off-road wheel be inspected?

Inspect it after every few trail trips and after any hard impact. Look for cracks at the spokes and mounting face, bends in the lip, and air loss at the bead, since any of these can affect how the wheel holds the tire and mounts to the hub.
