Method Race Wheels 105 Beadlock, 17x9 with 5 on 4.5 Bolt Pattern – Black – MR10579012538B

Method Race Wheels

$460.96In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 Matte Black aluminum beadlock wheel, MR105 Beadlock series
  • 5 on 4.5 bolt pattern, 83 center bore, -38 offset, 3.5 backspacing
  • Part number MRWMR10579012538B
  • No vehicle years or models are named, so confirm bolt pattern first

Description

Overview

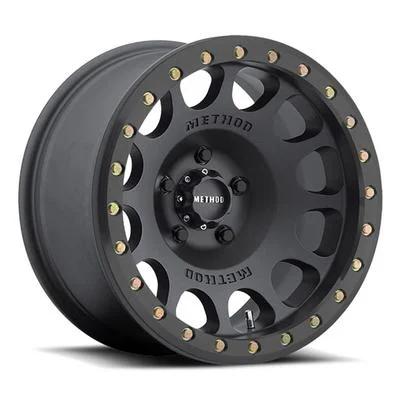

The Method Race Wheels MRWMR10579012538B is a 17×9 Matte Black aluminum beadlock wheel from the MR105 series, sized for a 5 on 4.5 bolt pattern. It targets off-road builds that run beadlock-style tires at low pressures.

The listed numbers are a -38 offset, an 83 center bore and a 3.5 backspacing on a 9-inch width. Any offset change moves the wheel in or out, so check fender and suspension clearance before fitting.

Key features

  • Beadlock style for off-road tire mounting
  • 17-inch diameter with a 9-inch width
  • Matte Black finish on aluminum
  • 5 on 4.5 bolt pattern with an 83 center bore
  • Offset of -38 and backspacing of 3.5
  • MR105 Beadlock series from Method Race Wheels

Choosing beadlock tires

Beadlock wheels are built around tires that can be mounted with a clamp arrangement, so the tire choice matters as much as the wheel. Look for tires labeled for beadlock use and check that the bead profile fits the wheel’s bead seat. Off-road tread and sidewall construction should suit the terrain, since low-pressure running places heavy load on the sidewall.

Tire size affects clearance and rolling diameter, so changes can alter speedometer readings and how the tire sits in the fender. Inflation practice matters too. Start from a pressure suited to the terrain, keep the bead seats clean, and recheck pressure after each run. Replace tires with cuts or bulges near the bead, since those can compromise the clamp.

  • Confirm bead profile before buying
  • Check tire diameter against fender room
  • Keep bead seats clean when mounting
  • Inspect sidewalls after rocky runs

Specifications

Brand Method Race Wheels
Part number MRWMR10579012538B
Series MR105 Beadlock
Style Beadlock
Wheel diameter 17 Inches
Wheel width 9 Inches
Offset -38
Center bore 83
Backspacing 3.5
Bolt pattern 5 on 4.5
Finish Matte Black
Construction Aluminum
Brand fitment label Universal Fit

Vehicle fitment

This wheel carries Universal Fit. Without a year, make or model, fit is unconfirmed, so compare the 5 on 4.5 pattern and 83 center bore with your hub first.

Make sure your vehicle’s year, model and trim are matched before buying. Model coverage cannot be ruled in or out until those details are checked.

Installation notes

Bead-lock hardware and tires have to match this beadlock design. Plan on sourcing a bead-lock ring and bolts that suit this wheel, and mount beadlock-rated tires.

What’s included

The wheel is the item included. Caps, lug nuts and valve stems are not included.

Not included: tires. Bead-lock ring and bolts are not confirmed as included.

SKU: MRWMR10579012538B Categories: ,

Questions & Answers

What is the Method Race Wheels MRWMR10579012538B?

It is a 17x9 Matte Black aluminum beadlock wheel from the MR105 series, with a 5 on 4.5 bolt pattern, an 83 center bore, a -38 offset and a 3.5 backspacing.

Does it fit a 5 on 4.5 hub?

The bolt pattern is 5 on 4.5, so that is the figure to match. Confirm your hub's bolt pattern and center bore before ordering, and confirm fit for your vehicle's year, model and trim.

Are tires included?

No, tires are not included. Beadlock-rated tires are a separate purchase, and a bead-lock ring and bolts should be planned for alongside them.

How often should beadlock ring bolts be checked?

Check them after the first few drives, then at regular service intervals and after any tire change. Loose bolts can let the ring shift, which affects bead retention. Retorque them to the correct value for the fastener and inspect the bolt holes for cracks.
